1000kW Cummins Series Generator

Brand Koten
Product origin Fujian China
Delivery time 20-25days
Supply capacity 100pcs per month

Koten Power Cummins series generator set adopts Cummins engine as the power source. Cummins As a global power leader who is devoted to the engine R&D and manufacturer since 1919 in Columbus. it has become the largest diesel engine manufacturer in the world providing more than 160 countries sales and aftersales service.

Email

Download

Koten Power Diesel Generator Set Powered By Cummins Engine.

50Hz ,400V Three Phase Prime Power 1000KW / 1250KVA.

60Hz, 440V Three Phase Prime Power 960KW / 1200KVA.

1000kW Generator

Featurres & Benefits Of Cummins Engine:

Easy service and maintance.
Adapt to harsh environment high altitude, extreme hot and cold environment and maintance.
24/7 global after-sales service and spare parts supply.
Full range.
50 degree ambient temperature approved.
Low operation cost.

Aplication: Koten gensets had been widly applicated for hospital, factories, shopping mall, hotel, banks, telecommunictaion, residential, airport, stations, military ect.

1,Technical data.

Genset Specification	Genset Model	KDC-1250/S		KDC-1200/S
	Frequency	50Hz		60Hz
	Prime Power	1000kW	1250kVA	960kW	1200kVA
	Standby Power	1100kW	1375kVA	1056kW	1320kVA
	Rated Voltage	400/230V		440/288V
	Rated Current	1800A		1574A
Engine Specification	Engine Brand	Cummins
	Model	QSK38-G5
	Aspiration	Turbocharged , Aftercooled
	Fuel System	Cummins MCRS
	No.Cylinders	12 in V
	Displacement	38L
	Bore * Stroke	159*159mm
	Compression Ratio	15.0:1
	Rated Speed	1500rpm		1800rpm
	Rated Power (With Fan)	1090kW		1220kW
	Governor Type	ECU		ECU
	Start Motor	24V
Alternator Specification	Alternator Brand	Koten KA-634G		Koten KA-634F
		Stamford LVI634G		Stamford LVI634G
	Phase	3
	Voltage	400/230V		440/288V
	Wiring Type	3 Phase 4Wire,Y Type
	Bearing	Single
	Power Factor	0.8
	Frequency	50Hz		60Hz
	Prime Power	1000kW		960kW
	Exciter Type	Brushless, Self-Excitation
	Voltage Regulation	± 1%
	Protection Grade	IP23
	Isulation Grade	H/H
	Altitude	1000m

Control Module	Standard	SmartGen
	Model	HGM6120N
	Protective Functions	★Low Oil Pressure	Image
		★High Water Temperature
		★High/Low Voltage
		★High Engine Temperature And Overspeed
		★Emergency Stop
		★Start Failure
		★Automatic mains failure

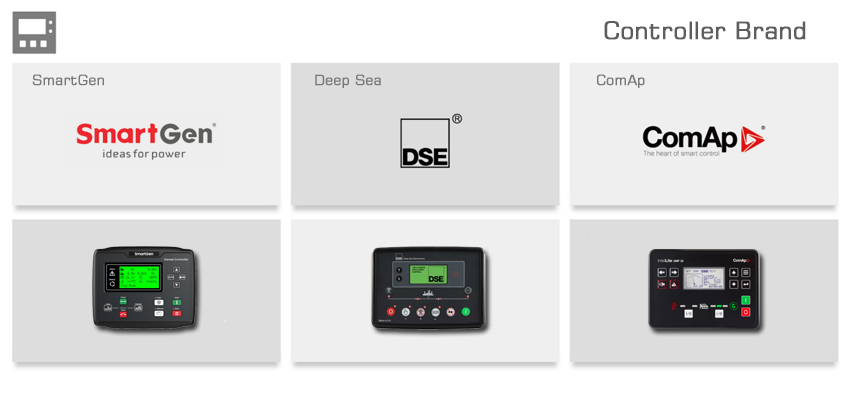

	Optional	Deepsea	ComAp

2, Open Type Diesel Generators

Cummins Series Generator For Sale

1250kVA Generator

3.Genset Configuration:

Standard:

Genset coupled with Original Cummins engine with heavy-duty air filter, oil filter, fuel filter, fuel and water separator. Standard Koten brand brushless ac alternators. Alternator optional for Stamford, Leroy Somer, Marathon, Meccalte.
Large size radiator.
Heavy duty antivibration pad.
Heavy duty steel base frame with 8 hours continues working fuel tank.
The thickness of the canopy is 2mm at least with high quality paint materials and strict powder paint processing.
High quality door locks and hinges and 180° revolvable with disassemble door for easy maintenance.
large-scale impedance combined type muffler with high quality soundproof and insulation materials to ensure the low noise level for the generators.
High quality maintenance-free battery with connecting cables.
Standard mcb or mccb with brand Delixi. Optional for Chint,ABB ect.
Standard Smartgen HGM6120N control moduel with AMF function, Optional for Deepsea, ComAp, Datakom,Deif ect.
Genset standard with battery charger and ATS connection port.
Genset standard with 4 lift eyes, lift pockets on the base frame and lifting port on the top of the canopy which ensure the gensets can be transport easily.
