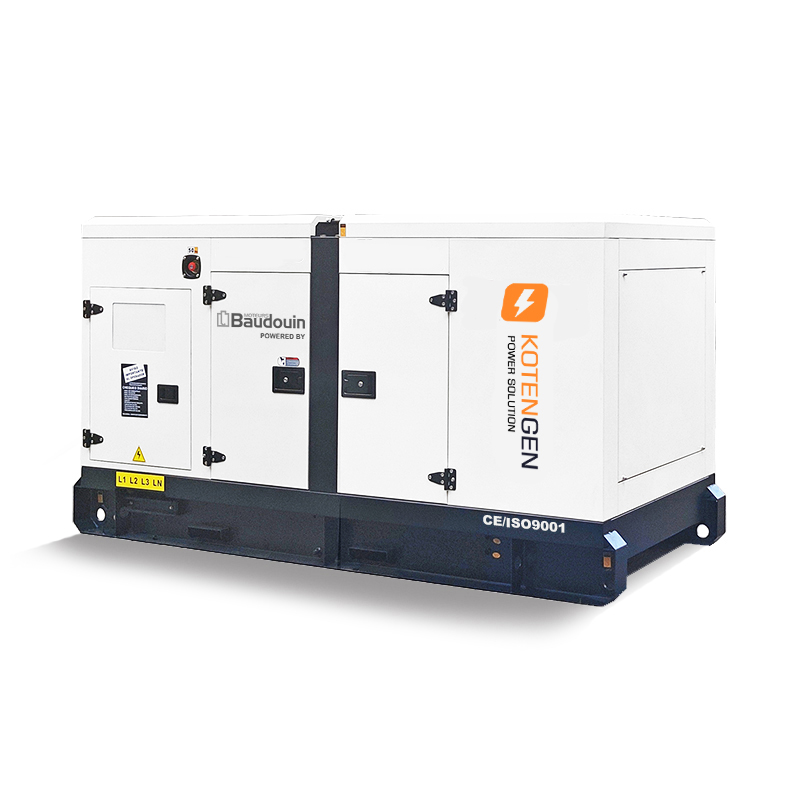

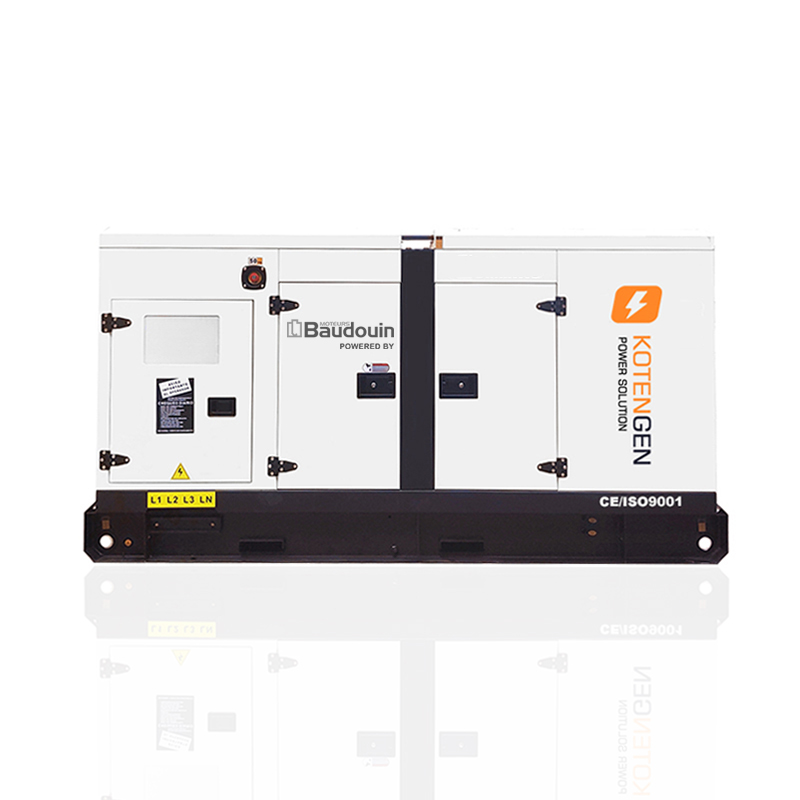

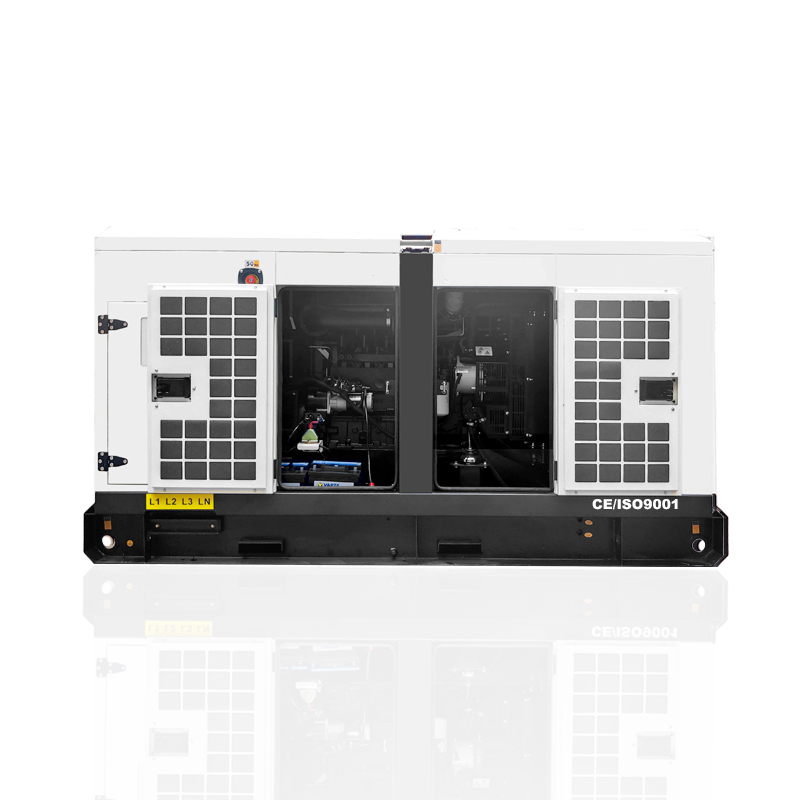

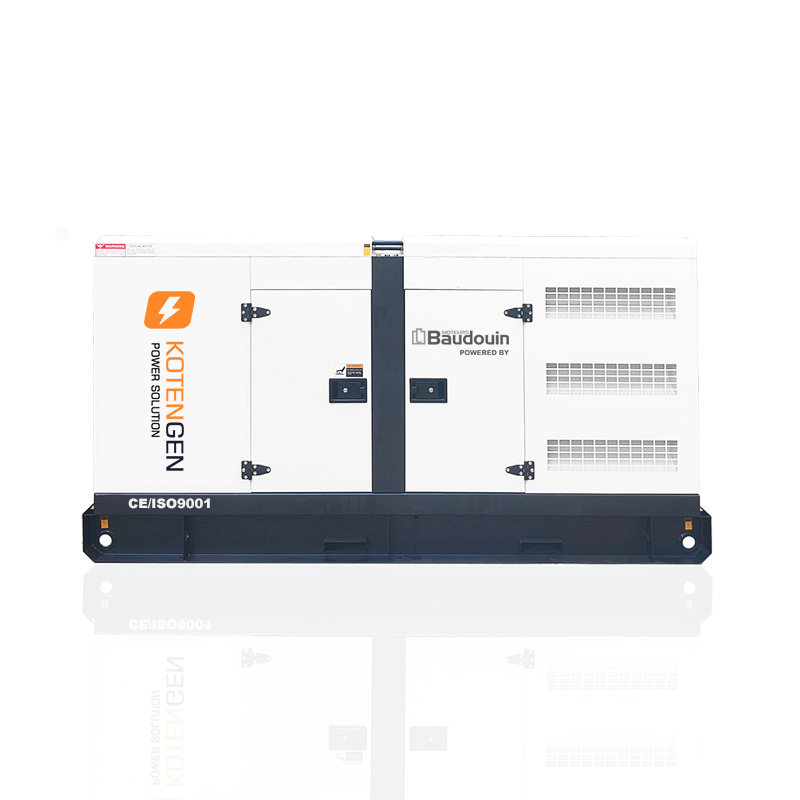

320kva Baudouin Silent Diesel Generator Set

Brand Koten
Product origin China
Delivery time 20-25days
Supply capacity 200set per month

1- Baudouin engine diesel generator set powered from 20kva to 2000kva.
2- Alternator optional: Koten/Leroysomer/Stamford.
3- Controller optional: Smartgen/Deepsea/ComAp.
4- 8hrs fuel tank as standard optional 12hrs or 24hrs big fuel tank capacity.
5- 1 Year global warranty.

Email

Download

320kva diesel generator

Koten Power Diesel Generator Set Powered By Baudouin Engine.

50Hz ,400V Three Phase Prime Power 256KW / 320KVA.

60Hz ,220V Three Phase Prime Power 280KW / 350KVA.

Features & Benefits Of Baudouin Engine:

Easy service and maintance.
Adapt to harsh environment high altitude, extreme hot and cold environment and maintance.
24/7 global after-sales service and spare parts supply.
Full range.
50 degree ambient temperature approved.
Low operation cost.

Aplication:

Koten gensets had been widly applicated for hospital, factories, shopping mall, hotel, banks, telecommunictaion, residential, airport, stations, military ect.

1,Technical data.

	Diesel Genset
Model	KB320D5	KB350D6
Frequency	50Hz	60Hz
Phase	3Ph	3Ph
Voltage	230/400V	127/220V
Prime Power	256 kW/320 kVA	280 kW/350 kVA
Standby Power	280 kW/350 kVA	308 kW/385 kVA
Fuel Tank Capacity	8hrs	8hrs
	Engine Datesheet
Engine Brand	BAUDOUIN
Engine Model	6M16G350/5	6M16G308/6
Engine speed	1500rpm	1800rpm
Rated power	291 kW	327 kW
No.of Cylinder	6
Bore	126mm
Strock	130mm
Displacement	9.726L
	Fuel Comsuption (L/Hr)
100% Prime power	70.5	79.4
75% Prime power	48.5	58.7
50% Prime power	32.2	39.9
	Alternator Optional
Alternator Brand	Koten/Leroysomer/Stamford
	Controller Optional
Controller Brand	Smartgen/ComAp/Deepsea
	Genset Dim and Weight
Dim	396211202038mm
Weight	3033kgs

2. Genset Controller:

3. Genset Configuration:

Standard:

Genset coupled with Original Cummins engine with heavy-duty air filter, oil filter, fuel filter, fuel and water separator. Standard Koten brand brushless ac alternators. Alternator optional for Stamford, Leroy Somer, Marathon, Meccalte.
Large size radiator.
Heavy duty antivibration pad.
Heavy duty steel base frame with 8 hours continues working fuel tank.
The thickness of the canopy is 2mm at least with high quality paint materials and strict powder paint processing.
High quality door locks and hinges and 180° revolvable with disassemble door for easy maintenance.
large-scale impedance combined type muffler with high quality soundproof and insulation materials to ensure the low noise level for the generators.
High quality maintenance-free battery with connecting cables.
Standard mcb or mccb with brand Delixi. Optional for Chint,ABB ect.

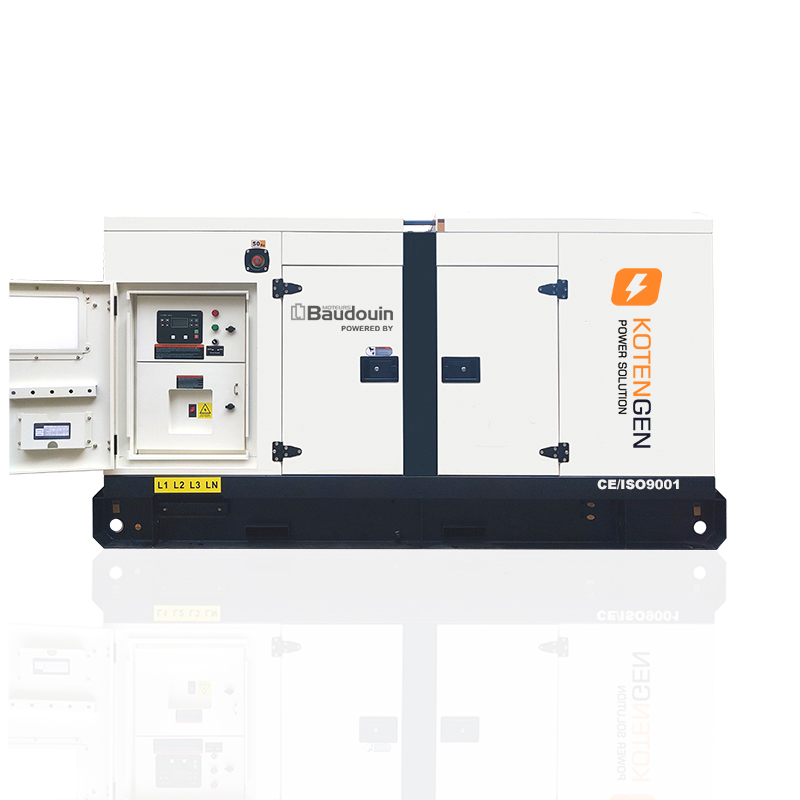

Standard Smartgen HGM6120N control moduel with AMF function, Optional for Deepsea, ComAp, Datakom,Deif ect.
Genset standard with battery charger and ATS connection port.
Genset standard with 4 lift eyes, lift pockets on the base frame and lifting port on the top of the canopy which ensure the gensets can be transport easily.
