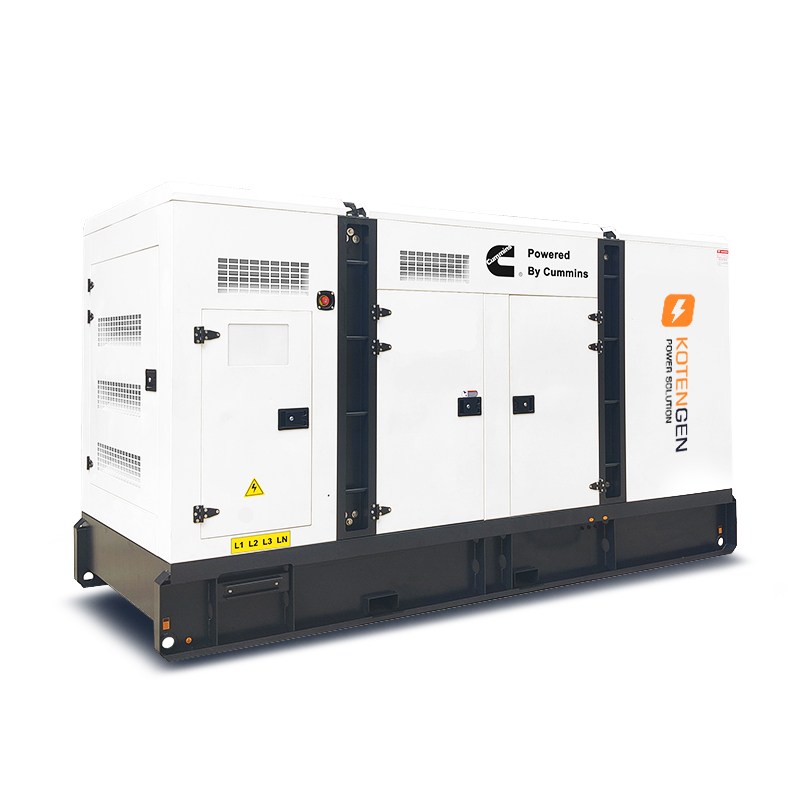

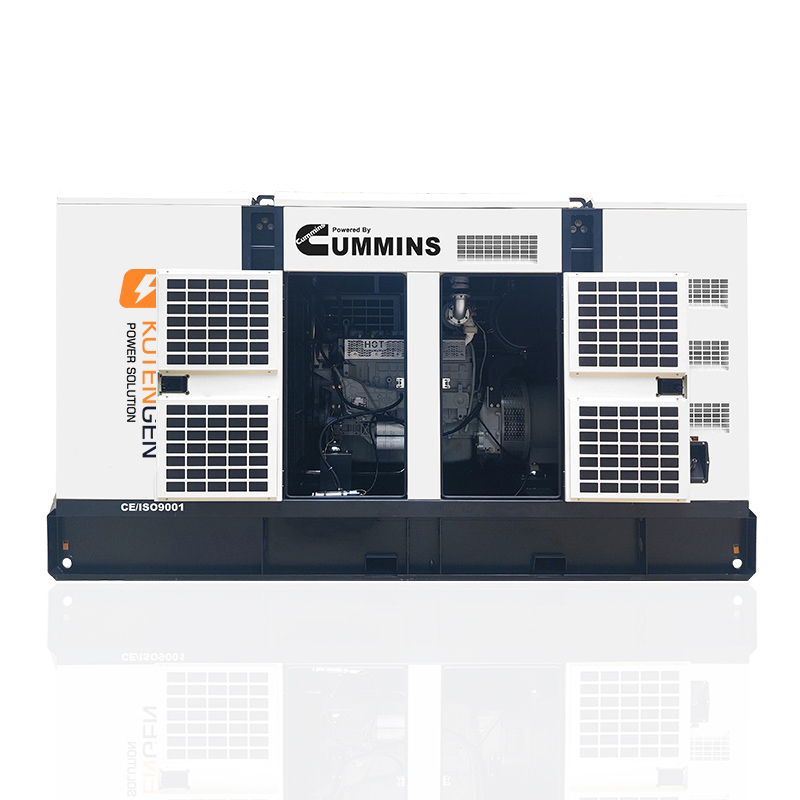

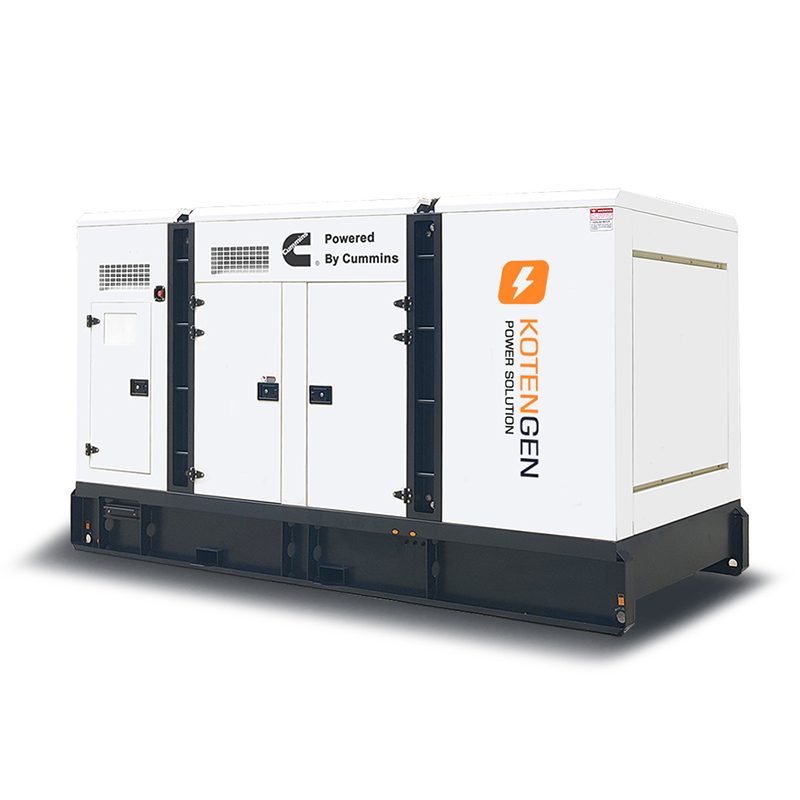

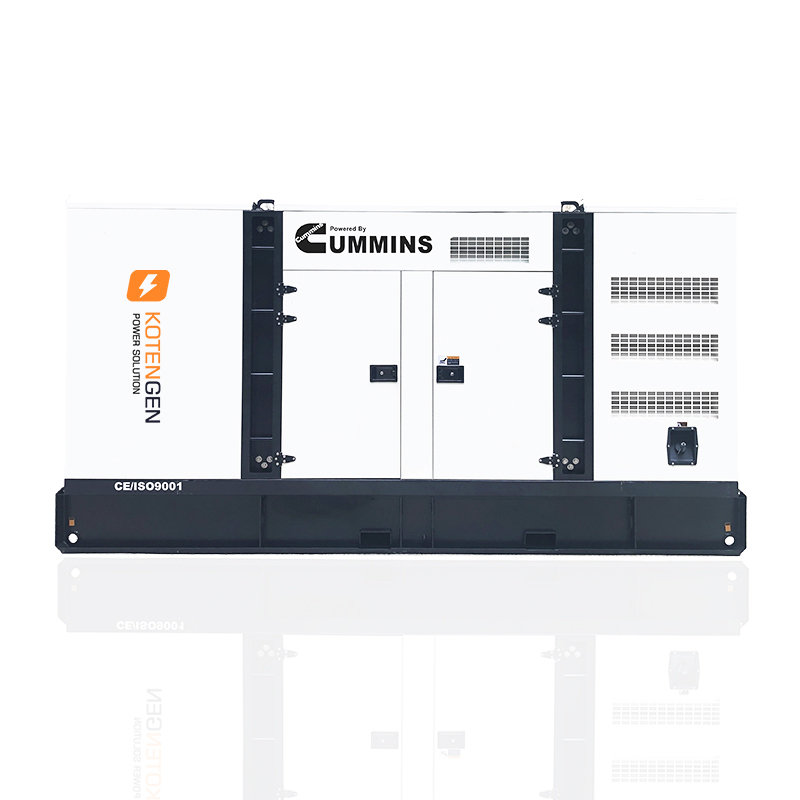

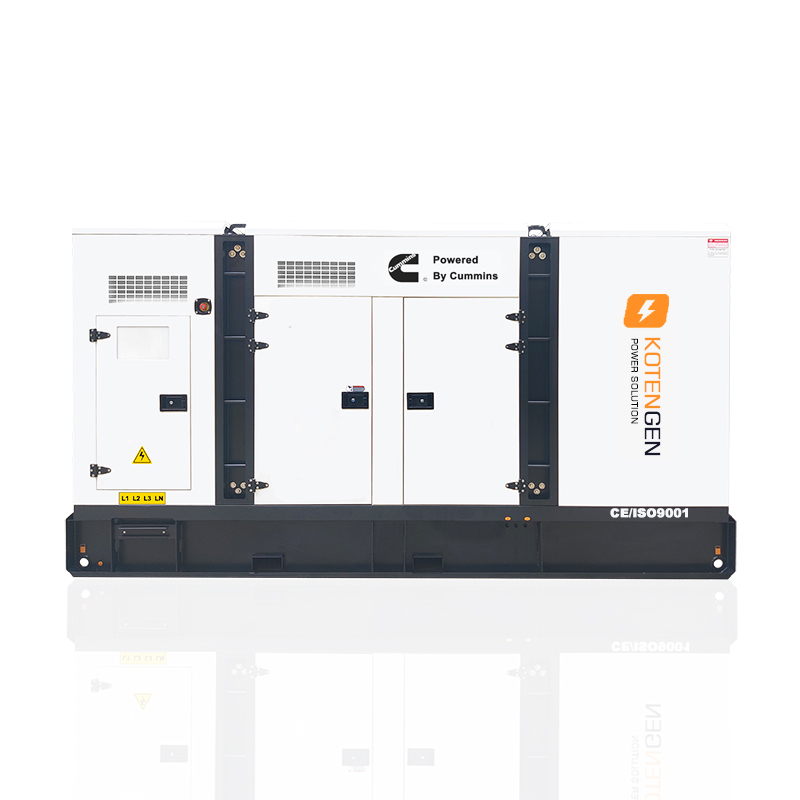

600kW 750kVA Cummins Series Generator

  • 600kW 750kVA Cummins Series Generator Manufacturers, 600kW 750kVA Cummins Series Generator Factory, Supply 600kW 750kVA Cummins Series Generator
  • 600kW 750kVA Cummins Series Generator Manufacturers, 600kW 750kVA Cummins Series Generator Factory, Supply 600kW 750kVA Cummins Series Generator
  • 600kW 750kVA Cummins Series Generator Manufacturers, 600kW 750kVA Cummins Series Generator Factory, Supply 600kW 750kVA Cummins Series Generator
  • 600kW 750kVA Cummins Series Generator Manufacturers, 600kW 750kVA Cummins Series Generator Factory, Supply 600kW 750kVA Cummins Series Generator
  • 600kW 750kVA Cummins Series Generator Manufacturers, 600kW 750kVA Cummins Series Generator Factory, Supply 600kW 750kVA Cummins Series Generator
  • video
600kW 750kVA Cummins Series Generator
  • Koten
  • Fujian China
  • 20-25 days
  • 200pcs per month

1,Easy service and maintance.
2,Adapt to harsh environment high altitude, extreme hot and cold environment and maintance.
3,24/7 global after-sales service and spare parts supply.
4,Low operation cost.

600kW Cummins Series Generator

Koten Power Diesel Generator Set Powered By Cummins Engine.

50Hz ,400V Three Phase Prime Power 600KW / 750KVA.

60Hz, 440V Three Phase Prime Power 720KW / 900KVA.


Koten Power Cummins series generator set adopts Cummins engine as the power source. Cummins As a global power leader who is devoted to the engine R&D and manufacturer since 1919 in Columbus. it has become the largest diesel engine manufacturer in the world providing more than 160 countries sales and aftersales service.

Features & Benefits Of Cummins Engine:

  • Easy service and maintance.

  • Adapt to harsh environment high altitude, extreme hot and cold environment and maintance.

  • 24/7 global after-sales service and spare parts supply.

  • Full range.

  • 50 degree ambient temperature approved.

  • Low operation cost.

Aplication:

Koten gensets had been widly applicated for hospital, factories, shopping mall, hotel, banks, telecommunictaion, residential, airport, stations, military ect.

1,Technical data.

Genset Specification

Genset Model

KC750D5

KC900D6

Frequency

50Hz

60Hz

Prime Power

600kW

750kVA

720kW

900kVA

Standby Power

660kW

825kVA

800kW

1000kVA

Rated Voltage

400/230V

220/127V

Rated Current

1080A

1189A

Engine Specification

Engine Brand

Cummins

Model

KTA38-G2

Aspiration

Turbocharged , Aftercooled

Fuel System

Cummins PT

No.Cylinders

12 in V

Displacement

38L

Bore * Stroke

159*159mm

Compression Ratio

14.5:1

Rated Speed

1500rpm

1800rpm

Rated Power (With Fan)

664kW

810kW

Governor Type

Electrical

Electrical

Start Motor

24V

Alternator Specification

Alternator Brand

Koten KA-634B

Koten KA-634C


Stamford LVI634B

Stamford LVI634C

Phase

3

Voltage

400/230V

440/288V

Wiring Type

3 Phase 4Wire,Y Type

Bearing

Single

Power Factor

0.8

Frequency

50Hz

60Hz

Prime Power

600kW

732kW

Exciter Type

Brushless, Self-Excitation

Voltage Regulation

± 1%

Protection Grade

IP23

Isulation Grade

H/H

Altitude

1000m

2, Genset Controller:

750kVA Generator

3.Genset Configuration:

Standard:

  • Genset coupled with Original Cummins engine with heavy-duty air filter, oil filter, fuel filter, fuel and water separator. Standard Koten brand brushless ac alternators. Alternator optional for Stamford, Leroy Somer, Marathon, Meccalte.

  • Large size radiator.

  • Heavy duty antivibration pad.

  • Heavy duty steel base frame with 8 hours continues working fuel tank.

  • The thickness of the canopy is 2mm at least with high quality paint materials and strict powder paint processing.

  • High quality door locks and hinges and 180° revolvable with disassemble door for easy maintenance.

  • large-scale impedance combined type muffler with high quality soundproof and insulation materials to ensure the low noise level for the generators.

  • High quality maintenance-free battery with connecting cables.

  • Standard mcb or mccb with brand Delixi. Optional for Chint,ABB ect.

  • Standard Smartgen HGM6120N control moduel with AMF function, Optional for Deepsea, ComAp, Datakom,Deif ect.

  • Genset standard with battery charger and ATS connection port.

  • Genset standard with 4 lift eyes, lift pockets on the base frame and lifting port on the top of the canopy which ensure the gensets can be transport easily.

Optional:

  • Water jacked heater.

  • Radiator water level sensor.

  • Oil heater.

  • Space heater.

  • ATS and synchronization panels.

  • Daliy fuel tank.

  • PMG for alternator.


4. FAQ

  • Q1,What's your warranty terms?

    A: 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period.

  • Q2.what is your power range of your diesel generator?

    A: we can provide power from 2KVA-2500KVA.

  • Q3. How long is your delivery time?

    A:2-6 weeks

  • Q4: What is your terms of payment ?

    A: T/T 30% in advance and TT 70% balance paid before shipment or 100% LC at sight.

  • Q5: What is your warranty period?

    A: Our payment terms is 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period.

  • Q6: Can you offer OEM service?

    A: Yes we can.

  • Q7: How could I trust you?

    A: Diesel Service & Supply stands behind the quality of all the used generators and industrial power equipment we sell. If you are not convinced by the pictures, videos, check-in reports, load tests, customer experiences and sales associates' knowledge about the generator you are interested in, then we invite you to come visit our expansive yard and shop facility to witness a load test and see the professional operation we have going on here.

Cummins Series Generator For Sale600kW Cummins Series Generator
