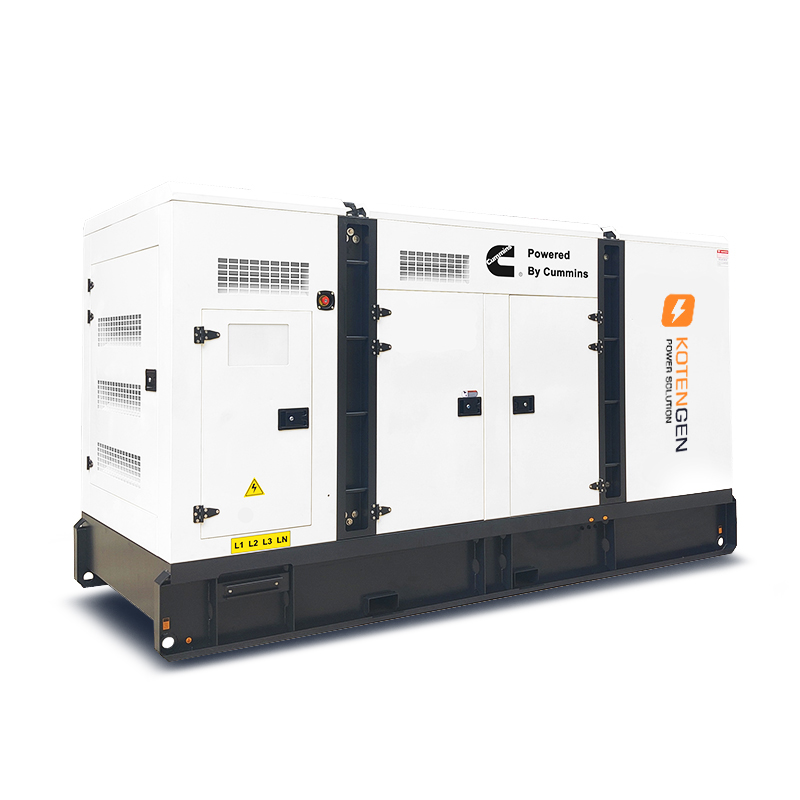

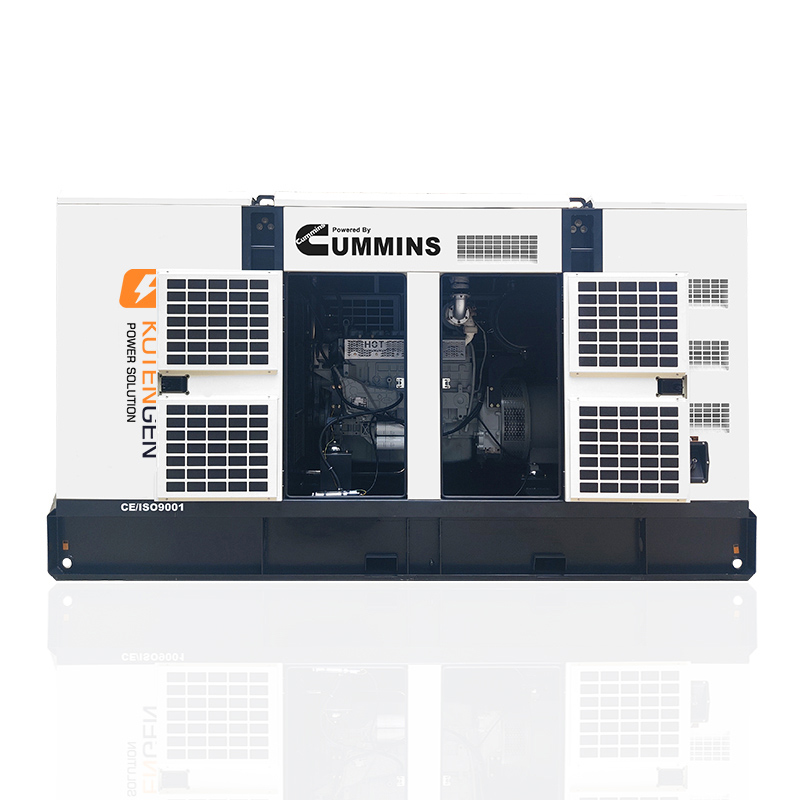

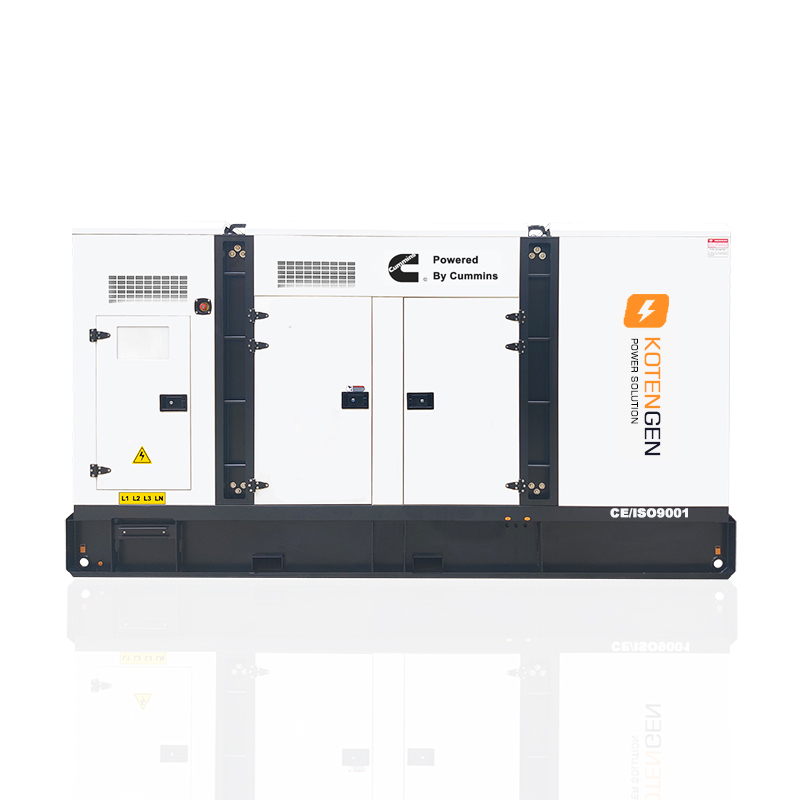

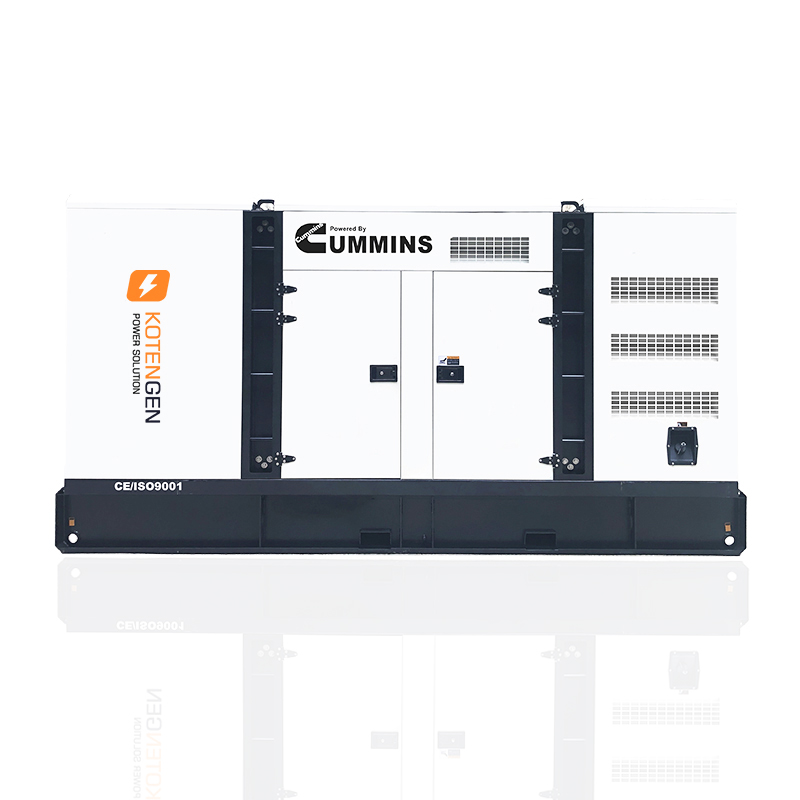

800kVA Cummins Series Diesel Generator Set
- Koten
- Fujian China
- 20-25days
- 200pcs per month
1,Easy service and maintance.
2,Adapt to harsh environment high altitude, extreme hot and cold environment and maintance.
3,24/7 global after-sales service and spare parts supply.
4,Low operation cost.
Koten Power Diesel Generator Set Powered By Cummins Engine.
50Hz ,400V Three Phase Prime Power 640KW / 800KVA.
60Hz, 440V Three Phase Prime Power 750KW / 938KVA.
Koten Power Cummins series generator set adopts Cummins engine as the power source. Cummins As a global power leader who is devoted to the engine R&D and manufacturer since 1919 in Columbus. it has become the largest diesel engine manufacturer in the world providing more than 160 countries sales and aftersales service.
Featurres & Benefits Of Cummins Engine:
Easy service and maintance.
Adapt to harsh environment high altitude, extreme hot and cold environment and maintance.
24/7 global after-sales service and spare parts supply.
Full range.
50 degree ambient temperature approved.
Low operation cost.
Aplication:
Koten gensets had been widly applicated for hospital, factories, shopping mall, hotel, banks, telecommunictaion, residential, airport, stations, military ect.
1,Technical data.
Genset Specification | Genset Model | KC800D5 | KC938D6 | ||
Frequency | 50Hz | 60Hz | |||
Prime Power | 640kW | 800kVA | 750kW | 938kVA | |
Standby Power | 704kW | 880kVA | 830kW | 1038kVA | |
Rated Voltage | 400/230V | 440/288V | |||
Rated Current | 1080A | 1230A | |||
Engine Specification | Engine Brand | Cummins | |||
Model | KTA38-G2B | ||||
Aspiration | Turbocharged , Aftercooled | ||||
Fuel System | Cummins PT | ||||
No.Cylinders | 12 in V | ||||
Displacement | 38L | ||||
Bore * Stroke | 159*159mm | ||||
Compression Ratio | 14.5:1 | ||||
Rated Speed | 1500rpm | 1800rpm | |||
Rated Power (With Fan) | 711kW | 830kW | |||
Governor Type | Electrical | Electrical | |||
Start Motor | 24V | ||||
Alternator Specification | Alternator Brand | Koten KA-634C | Koten KA-634C | ||
Stamford LVI634C | Stamford HCI634G | ||||
Phase | 3 | ||||
Voltage | 400/230V | 440/288V | |||
Wiring Type | 3 Phase 4Wire,Y Type | ||||
Bearing | Single | ||||
Power Factor | 0.8 | ||||
Frequency | 50Hz | 60Hz | |||
Prime Power | 640kW | 740kW | |||
Exciter Type | Brushless, Self-Excitation | ||||
Voltage Regulation | ± 1% | ||||
Protection Grade | IP23 | ||||
Isulation Grade | H/H | ||||
Altitude | 1000m |
2, Genset Controller:
3. Genset Configuration:
Standard:
Genset coupled with Original Cummins engine with heavy-duty air filter, oil filter, fuel filter, fuel and water separator. Standard Koten brand brushless ac alternators. Alternator optional for Stamford, Leroy Somer, Marathon, Meccalte.
Large size radiator.
Heavy duty antivibration pad.
Heavy duty steel base frame with 8 hours continues working fuel tank.
The thickness of the canopy is 2mm at least with high quality paint materials and strict powder paint processing.
High quality door locks and hinges and 180° revolvable with disassemble door for easy maintenance.
large-scale impedance combined type muffler with high quality soundproof and insulation materials to ensure the low noise level for the generators.
High quality maintenance-free battery with connecting cables.
Standard mcb or mccb with brand Delixi. Optional for Chint,ABB ect.
Standard Smartgen HGM6120N control moduel with AMF function, Optional for Deepsea, ComAp, Datakom,Deif ect.
Genset standard with battery charger and ATS connection port.
Genset standard with 4 lift eyes, lift pockets on the base frame and lifting port on the top of the canopy which ensure the gensets can be transport easily.
Optional:
Water jacked heater.
Radiator water level sensor.
Oil heater.
Space heater.
ATS and synchronization panels.
Daliy fuel tank.
PMG for alternator.
