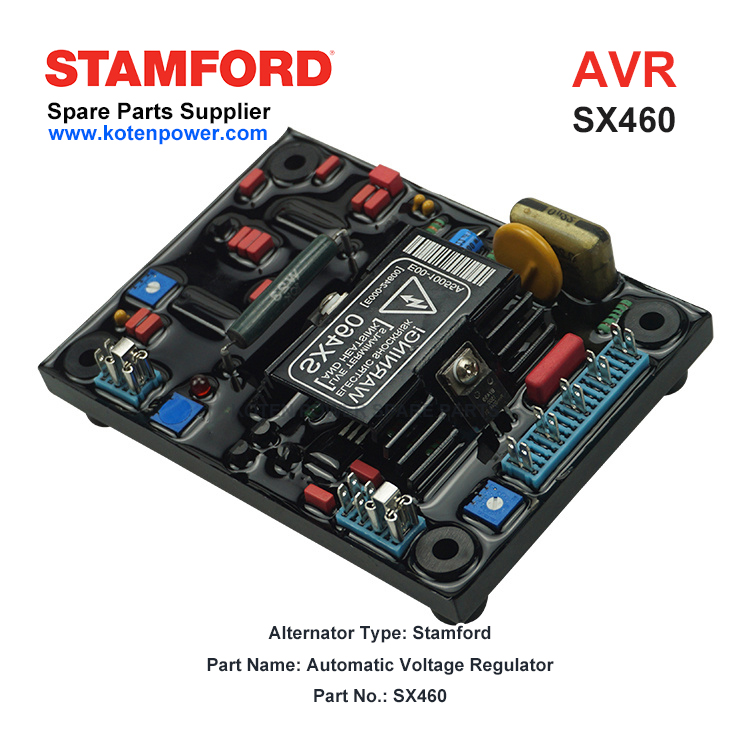

Original Stamford SX460 Automatic Voltage Regulator (AVR)
- Stamford
- China
- Within 5 days
- 1000/month
The AVR provides closed loop control by sensing the alternator output voltage at the main stator windings and adjusting the exciter stator field strength. Voltage induced in the exciter rotor, rectified by the rotating diodes, magnetises the rotating main field which induces voltage in the main stator windings. A self-excited AVR receives power from the alternator output terminals
3 Phase Automatic Voltage Regulator AVR SX460 For Generator is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator. Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%
Product Name | sx460 automatic voltage regulaotor avr generator part |
Material | plastic rubber |
Color | Black |
Standard | DIN GB ISO JIS BA ANSI |
Grade | Class B. |
Pins | 5 |
Weight | 0.35kg |
Used | Alternator generator |
