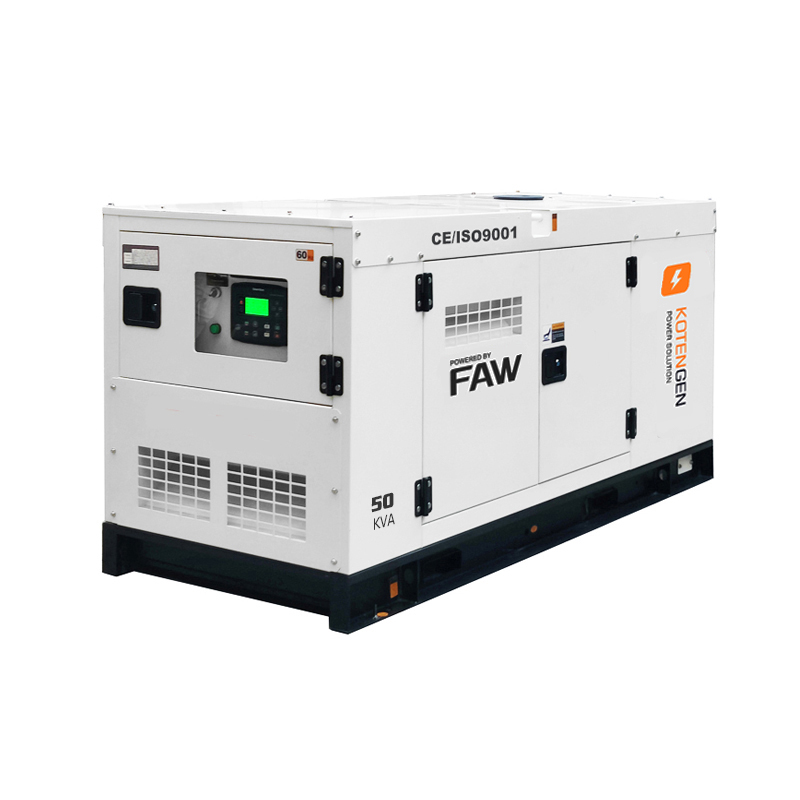

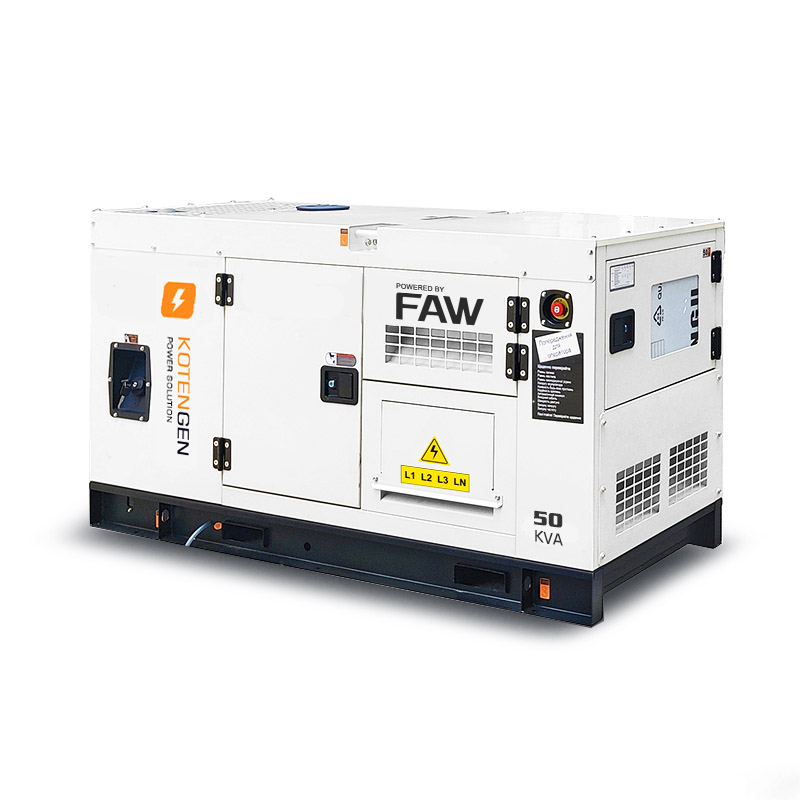

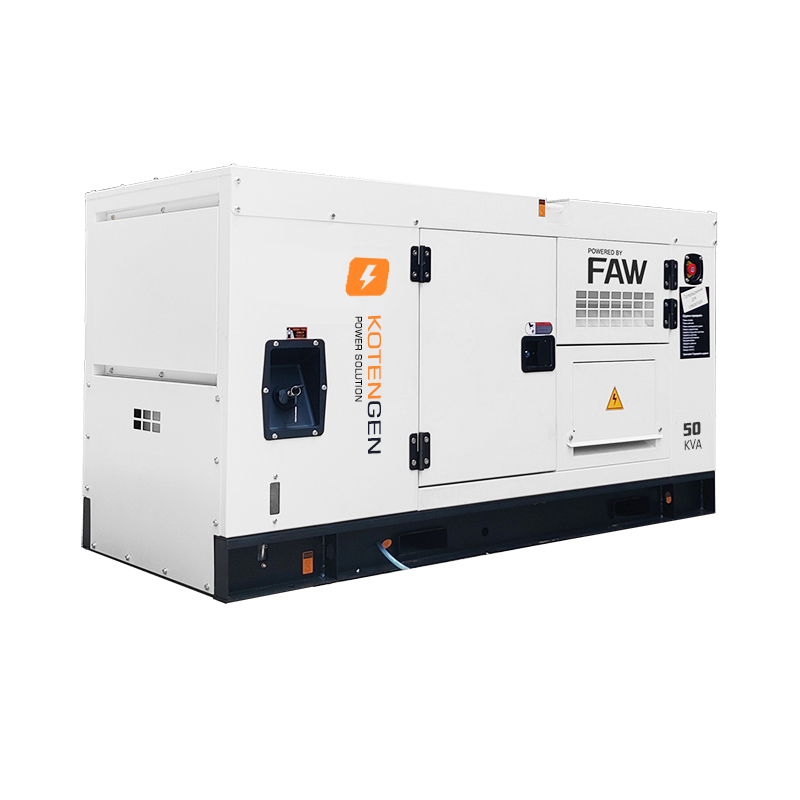

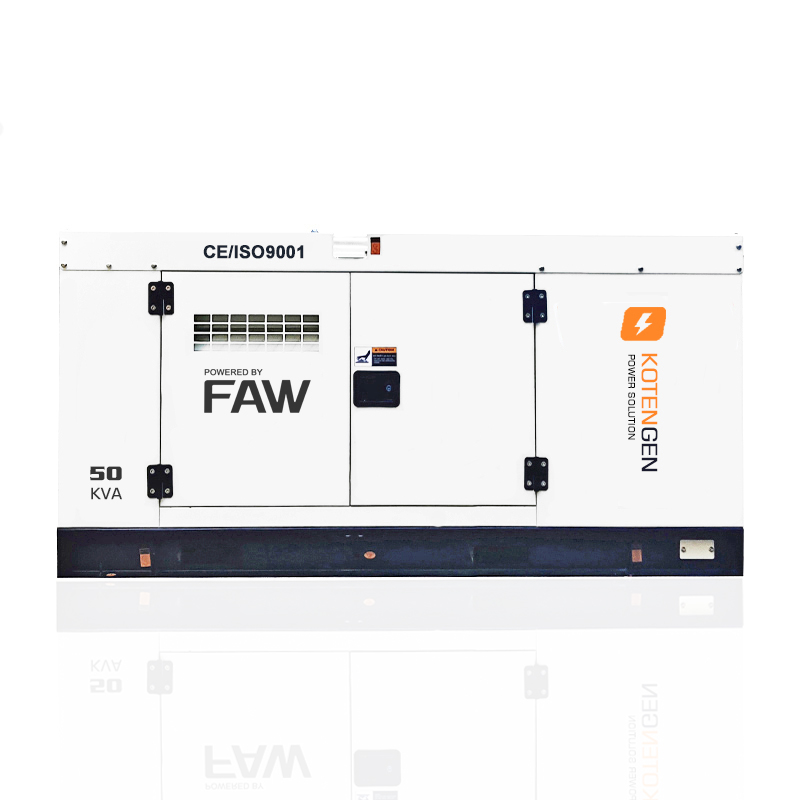

Fawde Series 40kW 50kVA Soudproof Diesel Generator
  • Koten
  • Fujian China
  • 20-25days
  • 200pcs per month

Base Rating Power For Fawde Series Generator
40kW /50kVA @50Hz 400/230V
44kW /55kVA @60Hz 220/127V

50kVA Soundproof Generator

Koten Power Diesel Generator Set Powered By Fawde Engine.

50Hz ,400V Three Phase Prime Power 40KW / 50KVA.

60Hz, 220V Three Phase Prime Power 44KW / 55kVA.


Koten Power FAWDE series generators which equiped with FAWDE engine. In October 2017, FAW, with Wuxi Diesel Engine Works of FAW Jiefang Automotive Company (FAWDE) as the main body, integrated DEUTZ (Dalian) Diesel Engine Co., LTD, Wuxi Fuel Injection Equipment Research Institute FAW, FAW R&D Center Engine Development Institute to establish FAWDE, which is an important business unit of FAW commercial vehicle business and a R & D and production base for heavy, medium and light engines of Jiefang company. The division is located in Wuxi, Changchun, Dalian and headquartered in Wuxi, covering a total area of 870,000 ㎡, with employees of over 5400, and the main products of diesel engines, gas engines, moving parts and remanufactured product and common rail systems. After establishment, it has formed the R&D layout of "two cities and three places" in Wuxi, Changchun, established "five mechanisms for technological innovation" and the big R&D system integrating procurement, market, quality, cost, process. Then the division has complete independent development capability of engine and has won "First Prize for National Science and Technology Progress", "Second Prize for National Science and Technology Progress" and become the first pilot demonstration project of intelligent manufacturing of MIIT, this brand engine are very popular in Southeast Asia, South American, Middle East and South Africa markets and so on.

Features & Benefits Of Fawde Engine:

  • Easy service and maintance.

  • Adapt to harsh environment high altitude, extreme hot and cold environment and maintance.

  • Compact design

  • 50 degree ambient temperature approved.

  • Low operation cost.

Aplication:

Koten gensets had been widly applicated for hospital, factories, shopping mall, hotel, banks, telecommunictaion, residential, airport, stations, military ect.

1,Technical data.


Genset SpecificationGenset ModelKF50D5KF55D6
Frequency50Hz60Hz
Prime Power40kW50kVA44kW55kVA
Standby Power44kW55kVA48kW60kVA
Rated Voltage400/230V220/127V
Rated Current72A147A
Engine SpecificationEngine BrandFawde
Model4DX22-65D4DX22-75D
AspirationTurbochargedTurbocharged
Fuel SystemDirect Inject
No.Cylinders4 in line
Displacement3.86 L
Bore * Stroke102*118mm
Compression Ratio17.0:1
Raated Speed1500rpm1800rpm
Rated Power (With Fan)48kW55kW
Governor TypeElectricalElectrical
Start Motor12V
Alternator SpecificationAlternator BrandKoten KA-224DKoten KA-224D
Stamford UCI224DStamford UCI224D
Phase3
Voltage400/230V220/127V
Wiring Type3 Phase 4Wire,Y Type
BearingSingle
Power Factor0.8
Frequency50Hz60Hz
Prime Power40kW50kW
Exciter TypeBrushless, Self-Excitation
Voltage Regulation± 1%
Protection GradeIP23
Isulation GradeH/H
Altitude1000m

2.Genset Controller:

40kW Diesel Generator

3.Genset Configuration:

Standard:

  • Genset coupled with Original Fawde engine with heavy-duty air filter, oil filter, fuel filter, fuel and water separator. Standard Koten brand brushless ac alternators. Alternator optional for Stamford, Leroy Somer, Marathon, Meccalte.

  • Large size radiator.

  • Heavy duty antivibration pad.

  • Heavy duty steel base frame with 8 hours continues working fuel tank.

  • The thickness of the canopy is 2mm at least with high quality paint materials and strict powder paint processing.

  • High quality door locks and hinges and 180° revolvable with disassemble door for easy maintenance.

  • large-scale impedance combined type muffler with high quality soundproof and insulation materials to ensure the low noise level for the generators.

  • High quality maintenance-free battery with connecting cables.

  • Standard mcb or mccb with brand Delixi. Optional for Chint,ABB ect.

  • Standard Smartgen HGM6120N control moduel with AMF function, Optional for Deepsea, ComAp, Datakom,Deif ect.

  • Genset standard with battery charger and ATS connection port.

  • Genset standard with 4 lift eyes, lift pockets on the base frame and lifting port on the top of the canopy which ensure the gensets can be transport easily.

Optional:

  • Water jacked heater.

  • Radiator water level sensor.

  • Oil heater.

  • Space heater.

  • ATS and synchronization panels.

  • Daliy fuel tank.

  • PMG for alternator.

Fawde Soundproof Generator50kVA Soundproof Generator
