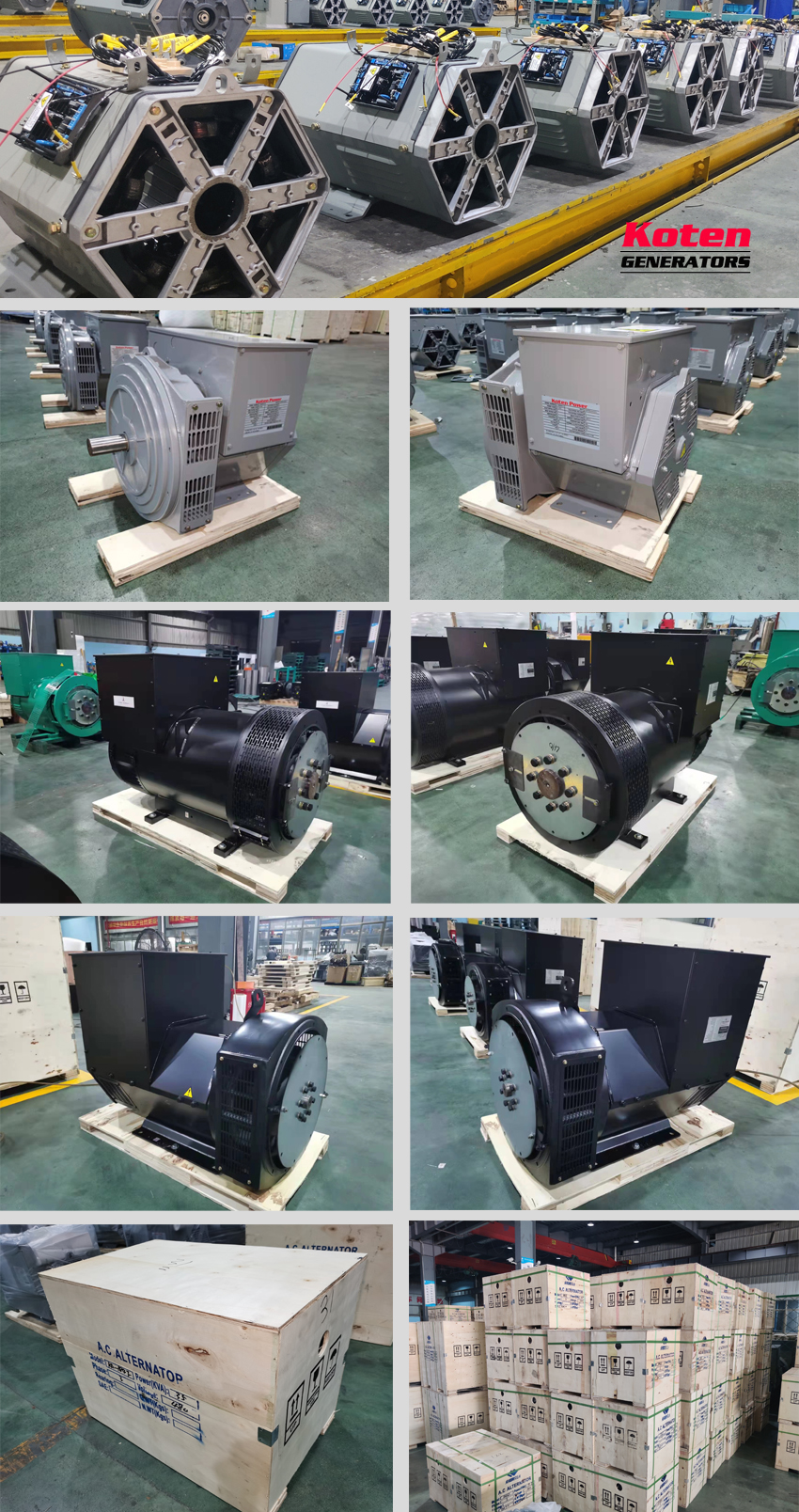

KA-184 Series 3phase Brushless Ac Alternator
- Koten
- Fujian China
- 10-15days
- 1000pcs per month
Koten Power Stamford Type Brushless Ac Alternator KA-184 Series With Power From 16kW to 40kW
| Model | 50Hz AVR CONTROLLED 40℃ AMBIENT TEMPERATURE CLASS "H" TEMP RISE 125℃ 2/3 PITCH WINDING (BASE CONTINUOUSE RATING IN KW) | 60Hz AVR CONTROLLED 40℃ AMBIENT TEMPERATURE CLASS "H" TEMP RISE 125℃ 2/3 PITCH WINDING (BASE CONTINUOUSE RATING IN KW) | ||||||
| 380V | 400V | 415V | 440V | 416V | 440V | 460V | 480V | |
| KA-184ES | 16.0 | 16.0 | 16.0 | 13.2 | 16.8 | 18.0 | 18.0 | 18.0 |
| KA-184E | 18.0 | 18.0 | 18.0 | 14.0 | 22.0 | 23.0 | 23.0 | 24.0 |
| KA-184FS | 20.0 | 20.0 | 20.0 | 16.0 | 24.0 | 25.0 | 25.0 | 26.0 |
| KA-184F | 22.0 | 22.0 | 22.0 | 18.0 | 26.0 | 27.5 | 27.5 | 28.0 |
| KA-184G | 25 | 25 | 25 | 22 | 28 | 30 | 30 | 30 |
| KA-184H | 30 | 30 | 30 | 26 | 35.4 | 37.5 | 37.5 | 37.5 |
| KA-184J | 32.0 | 34.0 | 34.0 | 28.0 | 37.8 | 40.0 | 40.0 | 40.0 |
1,Main Technical Data
● Anti-drip structure protection class IP23.
● Isulation class H.
● Rated Voltage 400V.
● Three phase four wires.
● Stable voltage regulation rate ≤±1%.
● Transient voltage regulation ≤－18% to +20%.
● Voltage waveform distortion rate THD≤3%.
● Telephone harmonic factor THF≤2%.
● Telephone interference factor TIF ≤50.
● Other standard of voltage can be available by your request.
2,Using Environment
The alterantor can be used in below environment:
● Above sea level: not exceed 1000m.
● Ambient temperature 258 to 313K (-15℃ to 40℃).
● Relativehumidity: not exceed 90%.
3,Characteristic
● Slectable magneto alternator and assist exciting winding system can supply the ability to support the short circuuit currency.
● Advanced automatic voltage regulator cantrol system can make the machine to operate reliably under the worst environment.
● It's easy to parallel connection with other alternator and electric net work. Standard 2/3 pitch winding suppress overfull neutral current.
● Dynamically balanced rotor is with sealed needle bering have both structure of single bearing and double bearings.
● It's easy to install and maintain; it has very simple oeration of termination, rottary rectifier & coupling nuts.
● Multi specification for adaptor and couping disc for single bearing. It's suitable to all the standard of land used alternator.
