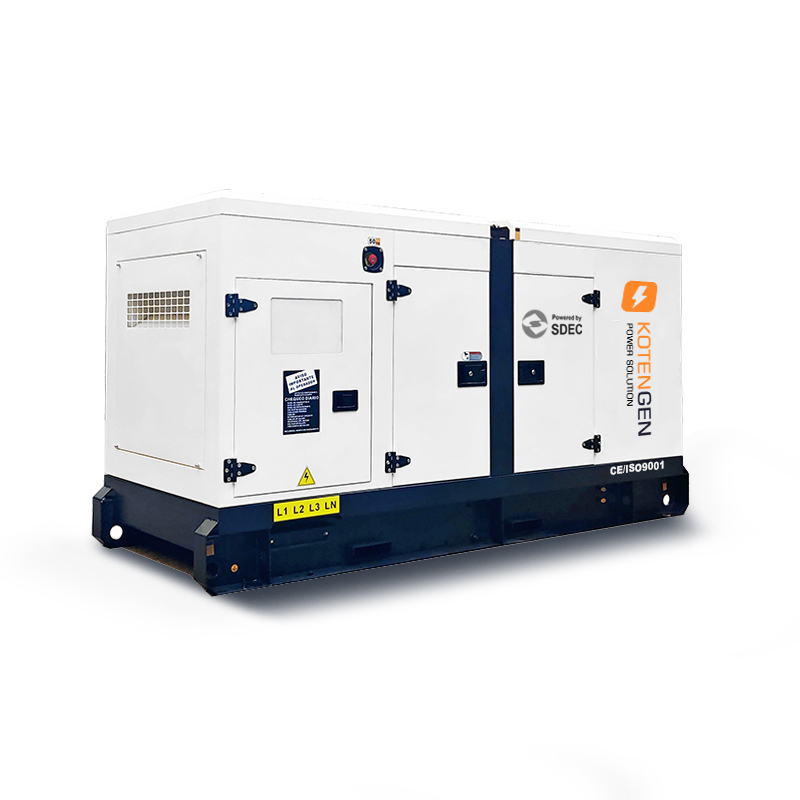

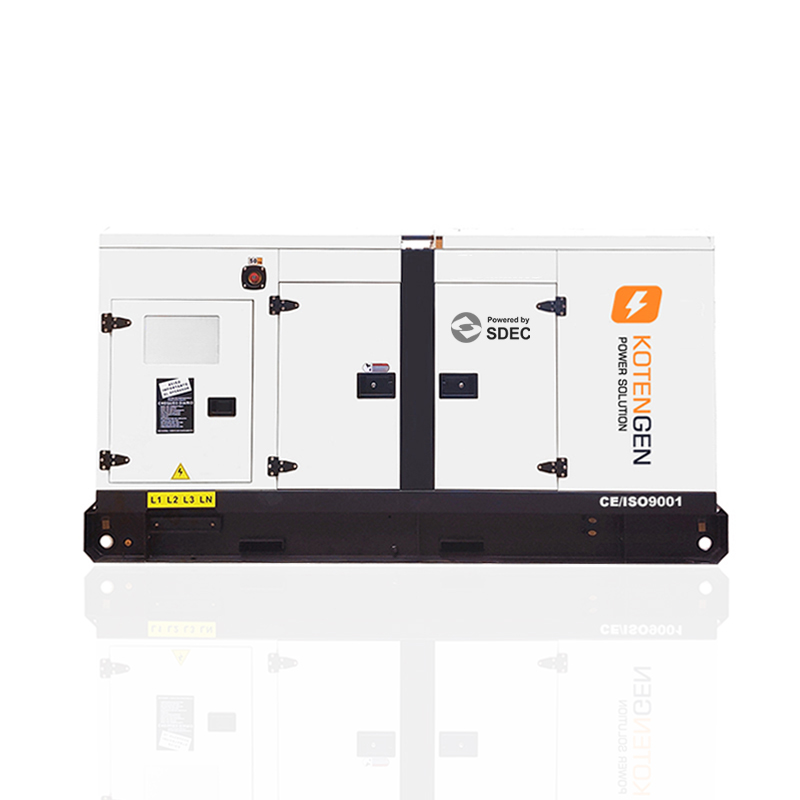

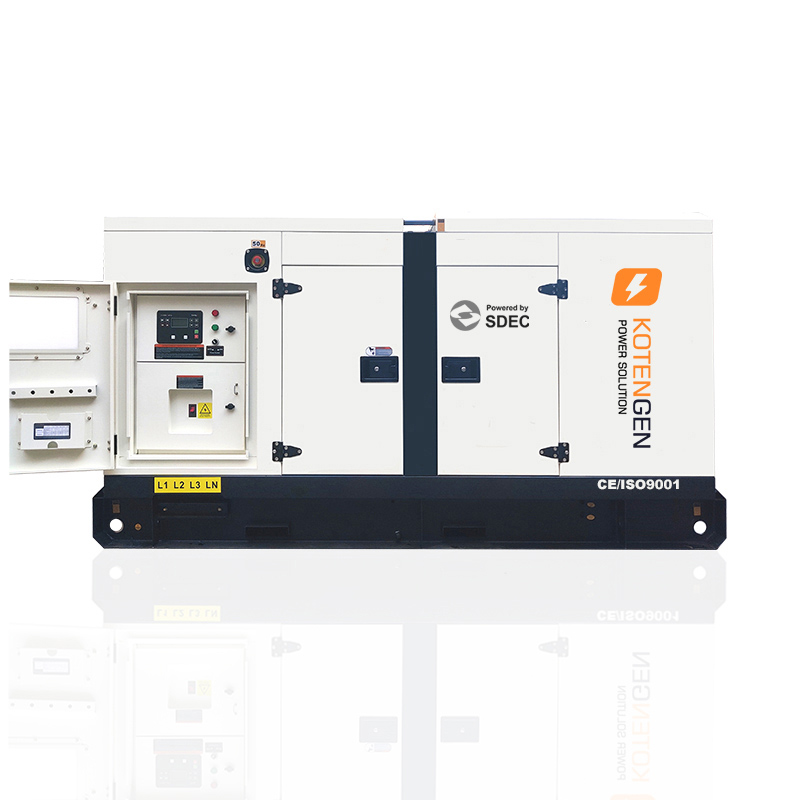

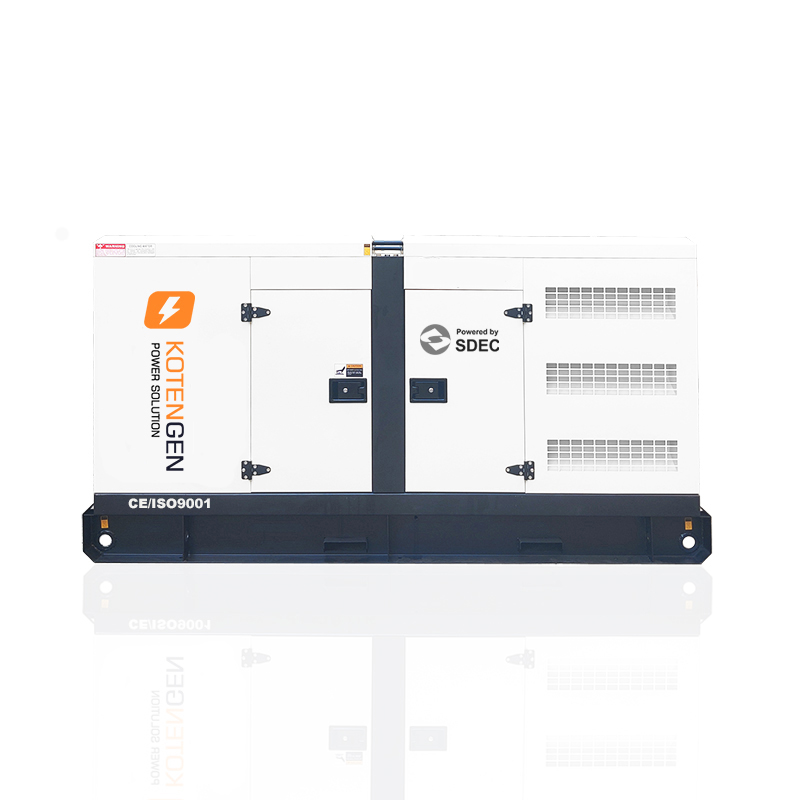

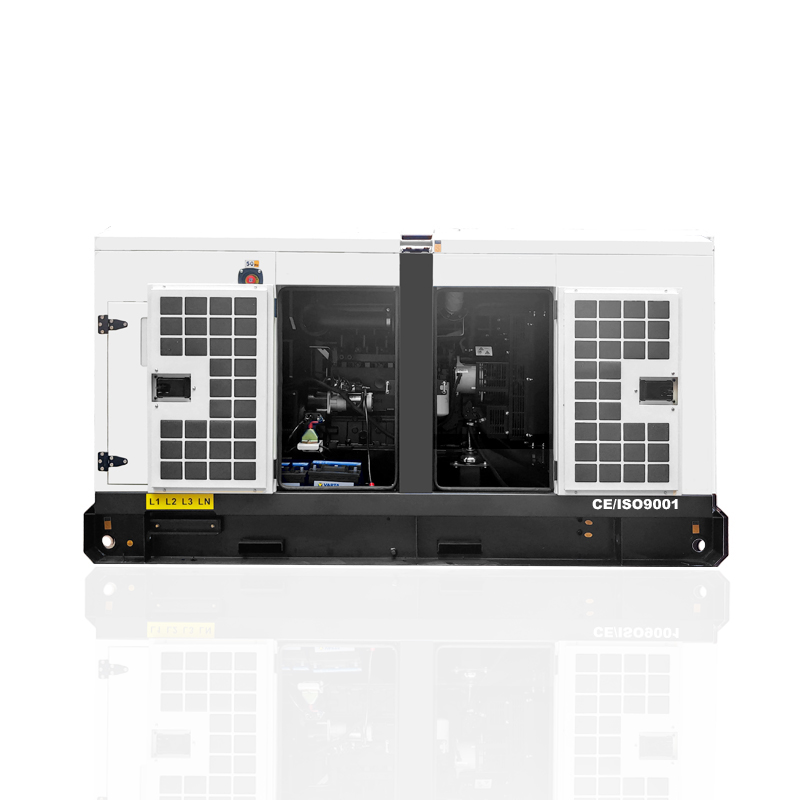

SDEC series 80kw 100kva Soundproof Electric Diesel Power Generator Set

Brand Koten
Product origin China
Delivery time 20-25days
Supply capacity 200set per month

Base Rating Power For SDEC Series Generator
80kW /100kVA @50Hz 400/230V; 88kW /110kVA @60Hz 220/127V

Email

Download

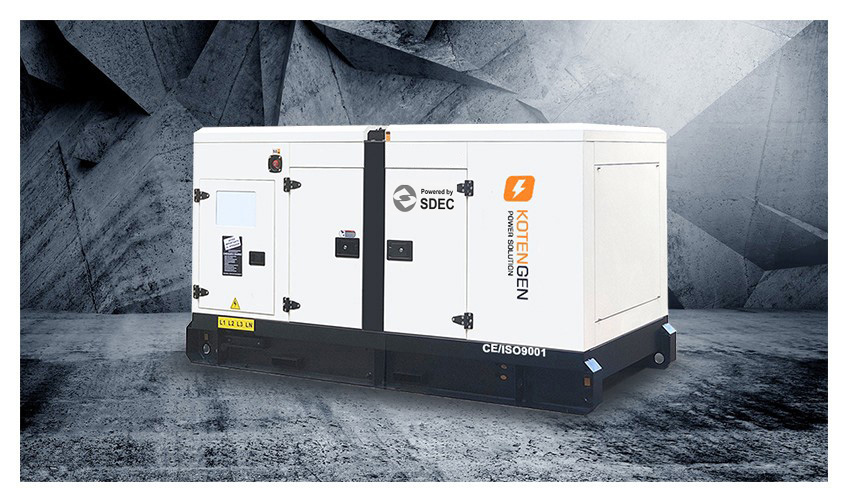

80kw sdec diesel power generator

Koten Power Diesel Generator Set Powered By SDEC Engine.

50Hz ,400V Three Phase Prime Power 80KW / 100KVA.

60Hz ,220V Three Phase Prime Power 88KW / 110KVA.

Features & Benefits Of SDEC Engine:

Easy service and maintance.
Adapt to harsh environment high altitude, extreme hot and cold environment and maintance.
Compact design
50 degree ambient temperature approved.
Low operation cost.

Aplication:

Koten gensets had been widly applicated for hospital, factories, shopping mall, hotel, banks, telecommunictaion, residential, airport, stations, military ect.

1,Technical data.

	Diesel Genset
Model	KS100D5	KS110D6
Frequency	50Hz	60Hz
Phase	3Ph	3Ph
Voltage	230/400V	127/220V
Prime Power	80 kW/100 kVA	88kW/110kVA
Standby Power	88 kW/110 kVA	97kW/120kVA
Fuel Tank Capacity	8hrs	8hrs
	Engine Datesheet
Engine Brand	SDEC
Engine Model	4HTAA4.3-G21
Engine speed	1500rpm	1800rpm
Rated power	95 kW	105 kW
No.of Cylinder	4
Bore	105mm
Strock	124mm
Displacement	4.3L
	Fuel Comsuption (L/Hr)
100% Prime power	23	23
75% Prime power	17.1	17.1
50% Prime power	11.8	11.8
	Alternator Optional
Alternator Brand	Koten/Leroysomer/Stamford
	Controller Optional
Controller Brand	Smartgen/ComAp/Deepsea
	Genset Dim and Weight
Dim	290011001500mm
Weight	1550kgs

2,Genset Controller:

3.Genset Configuration:

Standard:

Genset coupled with Original Fawde engine with heavy-duty air filter, oil filter, fuel filter, fuel and water separator. Standard Koten brand brushless ac alternators. Alternator optional for Stamford, Leroy Somer, Marathon, Meccalte.
Large size radiator.
Heavy duty antivibration pad.
Heavy duty steel base frame with 8 hours continues working fuel tank.
The thickness of the canopy is 2mm at least with high quality paint materials and strict powder paint processing.
High quality door locks and hinges and 180° revolvable with disassemble door for easy maintenance.
large-scale impedance combined type muffler with high quality soundproof and insulation materials to ensure the low noise level for the generators.
High quality maintenance-free battery with connecting cables.
Standard mcb or mccb with brand Delixi. Optional for Chint,ABB ect.
Standard Smartgen HGM6120N control moduel with AMF function, Optional for Deepsea, ComAp, Datakom,Deif ect.
Genset standard with battery charger and ATS connection port.
Genset standard with 4 lift eyes, lift pockets on the base frame and lifting port on the top of the canopy which ensure the gensets can be transport easily.
