SDEC series 120kw 150kva Silent Electric Diesel Power Generator Set
  • Koten
  • China
  • 20-25days
  • 200set per month

Base Rating Power For SDEC Series Generator
120kW /150kVA @50Hz 400/230V; 128kW /160kVA @60Hz 220/127V

120kw sdec diesel power generator

Koten Power Diesel Generator Set Powered By SDEC Engine.

50Hz ,400V Three Phase Prime Power 120KW / 150KVA.

60Hz ,220V Three Phase Prime Power 128KW / 160KVA.


Features & Benefits Of SDEC Engine:

  • Easy service and maintance.

  • Adapt to harsh environment high altitude, extreme hot and cold environment and maintance.

  • Compact design

  • 50 degree ambient temperature approved.

  • Low operation cost.

Aplication:

Koten gensets had been widly applicated for hospital, factories, shopping mall, hotel, banks, telecommunictaion, residential, airport, stations, military ect.

1,Technical data.


Diesel Genset
ModelKS150D5KS20D6
Frequency50Hz60Hz
Phase3Ph3Ph
Voltage230/400V127/220V
Prime Power120 kW/150 kVA128kW/160kVA
Standby Power132 kW/165 kVA140kW/175kVA
Fuel Tank Capacity8hrs 8hrs

Engine Datesheet
Engine BrandSDEC
Engine Model6HTAA6.5-G22
Engine speed1500rpm1800rpm
Rated power140 kW150 kW
No.of Cylinder6
Bore 105mm
Strock124mm
Displacement6.5L

Fuel Comsuption (L/Hr)
100% Prime power33.136.3
75% Prime power25.227.9
50% Prime power17.619.6

Alternator Optional
Alternator BrandKoten/Leroysomer/Stamford

Controller Optional
Controller BrandSmartgen/ComAp/Deepsea

Genset Dim and Weight
Dim3100*1100*1680mm
Weight1800kgs

2,Genset Controller:

sdec soundproof power generator


3.Genset Configuration:

Standard:

  • Genset coupled with Original Fawde engine with heavy-duty air filter, oil filter, fuel filter, fuel and water separator. Standard Koten brand brushless ac alternators. Alternator optional for Stamford, Leroy Somer, Marathon, Meccalte.

  • Large size radiator.

  • Heavy duty antivibration pad.

  • Heavy duty steel base frame with 8 hours continues working fuel tank.

  • The thickness of the canopy is 2mm at least with high quality paint materials and strict powder paint processing.

  • High quality door locks and hinges and 180° revolvable with disassemble door for easy maintenance.

  • large-scale impedance combined type muffler with high quality soundproof and insulation materials to ensure the low noise level for the generators.

  • High quality maintenance-free battery with connecting cables.

  • Standard mcb or mccb with brand Delixi. Optional for Chint,ABB ect.

  • Standard Smartgen HGM6120N control moduel with AMF function, Optional for Deepsea, ComAp, Datakom,Deif ect.

  • Genset standard with battery charger and ATS connection port.

  • Genset standard with 4 lift eyes, lift pockets on the base frame and lifting port on the top of the canopy which ensure the gensets can be transport easily.

Optional:

  • Water jacked heater.

  • Radiator water level sensor.

  • Oil heater.

  • Space heater.

  • ATS and synchronization panels.

  • Daliy fuel tank.

  • PMG for alternator.

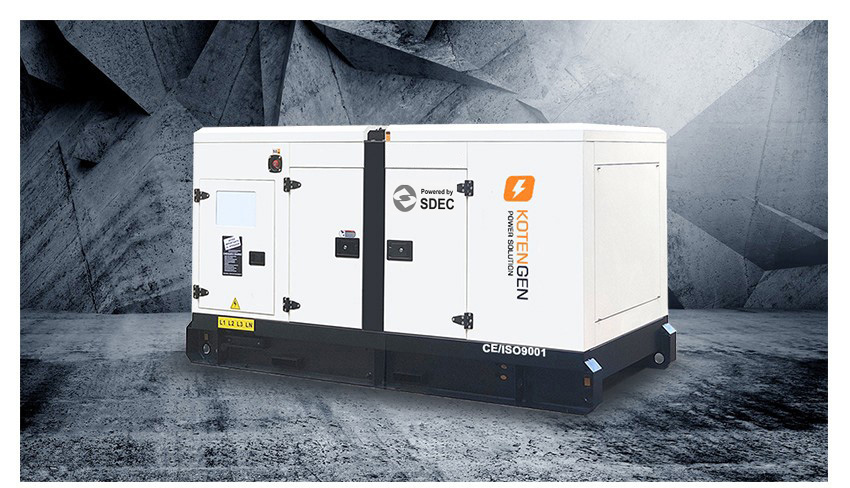

150kva sdec power genset

120kw sdec diesel power generator
