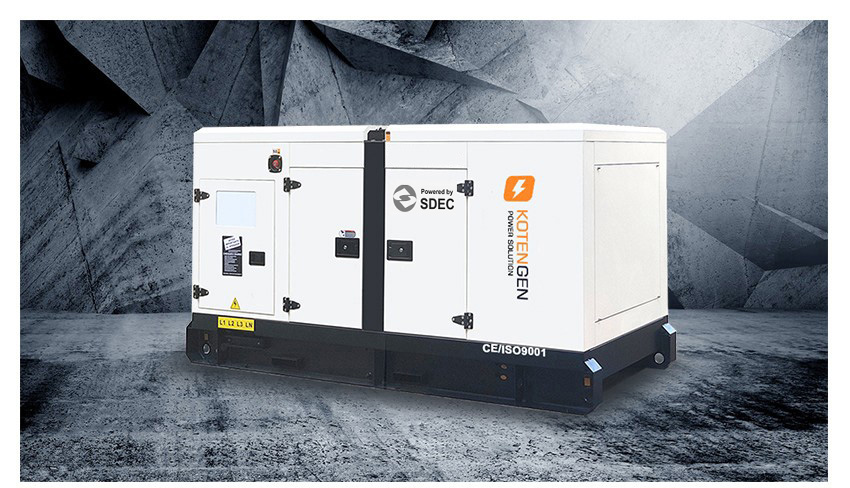

SDEC series 200kw 250kva Silent Diesel Engine Generator Set
- Koten
- China
- 20-25days
- 200set per month
Base Rating Power For SDEC Series Generator
200kW /250kVA @50Hz 400/230V; 220kW /275kVA @60Hz 220/127V
Koten Power Diesel Generator Set Powered By SDEC Engine.
50Hz ,400V Three Phase Prime Power 200KW / 250KVA.
60Hz ,220V Three Phase Prime Power 220KW / 275KVA.
Features & Benefits Of SDEC Engine:
Easy service and maintance.
Adapt to harsh environment high altitude, extreme hot and cold environment and maintance.
Compact design
50 degree ambient temperature approved.
Low operation cost.
Aplication:
Koten
gensets had been widly applicated for hospital, factories, shopping
mall, hotel, banks, telecommunictaion, residential, airport, stations,
military ect.
1,Technical data.
| Diesel Genset | ||
| Model | KS250D5 | KS275D6 |
| Frequency | 50Hz | 60Hz |
| Phase | 3Ph | 3Ph |
| Voltage | 230/400V | 127/220V |
| Prime Power | 200 kW/250 kVA | 220kW/275kVA |
| Standby Power | 220 kW/275 kVA | 240kW/300kVA |
| Fuel Tank Capacity | 8hrs | 8hrs |
| Engine Datesheet | ||
| Engine Brand | SDEC | |
| Engine Model | 6DTAA8.9-G23 | |
| Engine speed | 1500rpm | 1800rpm |
| Rated power | 230 kW | 255 kW |
| No.of Cylinder | 6 | |
| Bore | 114mm | |
| Strock | 144mm | |
| Displacement | 8.82L | |
| Fuel Comsuption (L/Hr) | ||
| 100% Prime power | 55.1 | 63.0 |
| 75% Prime power | 40.7 | 46.1 |
| 50% Prime power | 27.7 | 32.3 |
| Alternator Optional | ||
| Alternator Brand | Koten/Leroysomer/Stamford | |
| Controller Optional | ||
| Controller Brand | Smartgen/ComAp/Deepsea | |
| Genset Dim and Weight | ||
| Dim | 3600*1260*2150mm | |
| Weight | 2750kgs | |
2,Genset Controller:
3.Genset Configuration:
Standard:
Genset coupled with Original Fawde engine with heavy-duty air filter, oil filter, fuel filter, fuel and water separator. Standard Koten brand brushless ac alternators. Alternator optional for Stamford, Leroy Somer, Marathon, Meccalte.
Large size radiator.
Heavy duty antivibration pad.
Heavy duty steel base frame with 8 hours continues working fuel tank.
The thickness of the canopy is 2mm at least with high quality paint materials and strict powder paint processing.
High quality door locks and hinges and 180° revolvable with disassemble door for easy maintenance.
large-scale impedance combined type muffler with high quality soundproof and insulation materials to ensure the low noise level for the generators.
High quality maintenance-free battery with connecting cables.
Standard mcb or mccb with brand Delixi. Optional for Chint,ABB ect.
Standard Smartgen HGM6120N control moduel with AMF function, Optional for Deepsea, ComAp, Datakom,Deif ect.
Genset standard with battery charger and ATS connection port.
Genset standard with 4 lift eyes, lift pockets on the base frame and lifting port on the top of the canopy which ensure the gensets can be transport easily.
Optional:
Water jacked heater.
Radiator water level sensor.
Oil heater.
Space heater.
ATS and synchronization panels.
Daliy fuel tank.
PMG for alternator.
