SDEC series 280kw 350kva Soundproof Electric Diesel Power Generator Set

Brand Koten
Product origin China
Delivery time 20-25days
Supply capacity 200set per month

Base Rating Power For SDEC Series Generator
280kW /350kVA @50Hz 400/230V; 280kW /350kVA @60Hz 220/127V

Email

Download

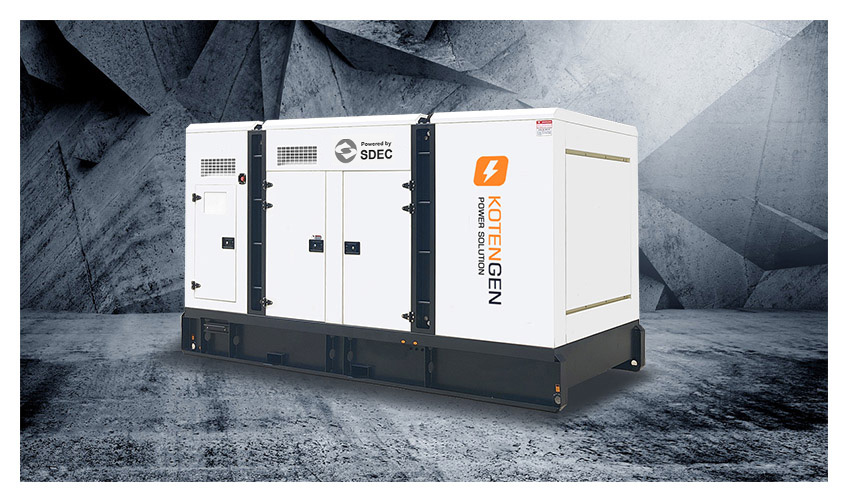

280kw sdec diesel power generator

Koten Power Diesel Generator Set Powered By SDEC Engine.

50Hz ,400V Three Phase Prime Power 280KW / 350KVA.

60Hz ,220V Three Phase Prime Power 280KW / 350KVA.

Features & Benefits Of SDEC Engine:

Easy service and maintance.
Adapt to harsh environment high altitude, extreme hot and cold environment and maintance.
Compact design
50 degree ambient temperature approved.
Low operation cost.

Aplication:

Koten gensets had been widly applicated for hospital, factories, shopping mall, hotel, banks, telecommunictaion, residential, airport, stations, military ect.

1,Technical data.

	Diesel Genset
Model	KS350D5	KS350D6
Frequency	50Hz	60Hz
Phase	3Ph	3Ph
Voltage	230/400V	127/220V
Prime Power	280 kW/350 kVA	280 kW/350 kVA
Standby Power	308 kW/385 kVA	308 kW/385 kVA
Fuel Tank Capacity	8hrs	8hrs
	Engine Datesheet
Engine Brand	SDEC
Engine Model	6ETAA11.8-G21
Engine speed	1500rpm	1800rpm
Rated power	307 kW	307 kW
No.of Cylinder	6
Bore	128mm
Strock	153mm
Displacement	11.8L
	Fuel Comsuption (L/Hr)
100% Prime power	73.3	73.7
75% Prime power	53.7	54.0
50% Prime power	37.0	37.2
	Alternator Optional
Alternator Brand	Koten/Leroysomer/Stamford
	Controller Optional
Controller Brand	Smartgen/ComAp/Deepsea
	Genset Dim and Weight
Dim	440017002230mm
Weight	4300kgs

2,Genset Controller:

3.Genset Configuration:

Standard:

Genset coupled with Original Fawde engine with heavy-duty air filter, oil filter, fuel filter, fuel and water separator. Standard Koten brand brushless ac alternators. Alternator optional for Stamford, Leroy Somer, Marathon, Meccalte.
Large size radiator.
Heavy duty antivibration pad.
Heavy duty steel base frame with 8 hours continues working fuel tank.
The thickness of the canopy is 2mm at least with high quality paint materials and strict powder paint processing.
High quality door locks and hinges and 180° revolvable with disassemble door for easy maintenance.
large-scale impedance combined type muffler with high quality soundproof and insulation materials to ensure the low noise level for the generators.
High quality maintenance-free battery with connecting cables.
Standard mcb or mccb with brand Delixi. Optional for Chint,ABB ect.
Standard Smartgen HGM6120N control moduel with AMF function, Optional for Deepsea, ComAp, Datakom,Deif ect.
Genset standard with battery charger and ATS connection port.
Genset standard with 4 lift eyes, lift pockets on the base frame and lifting port on the top of the canopy which ensure the gensets can be transport easily.
