YTO Series 180KW 225KVA Enmergency Diesel Generator Set

Brand Koten
Product origin Fujian China
Delivery time 20-25days
Supply capacity 200pcs per month

Koten YTO Series Generator With Prime Power:
180kW/225kVA @50Hz 400V
196kW/245kVA @60Hz 220V

Email

Download

Koten Power Diesel Generator Set Powered By YTO Engine.

50Hz ,400V Three Phase Prime Power180KW / 225KVA.

60Hz, 220V Three Phase Prime Power196KW / 245KVA.

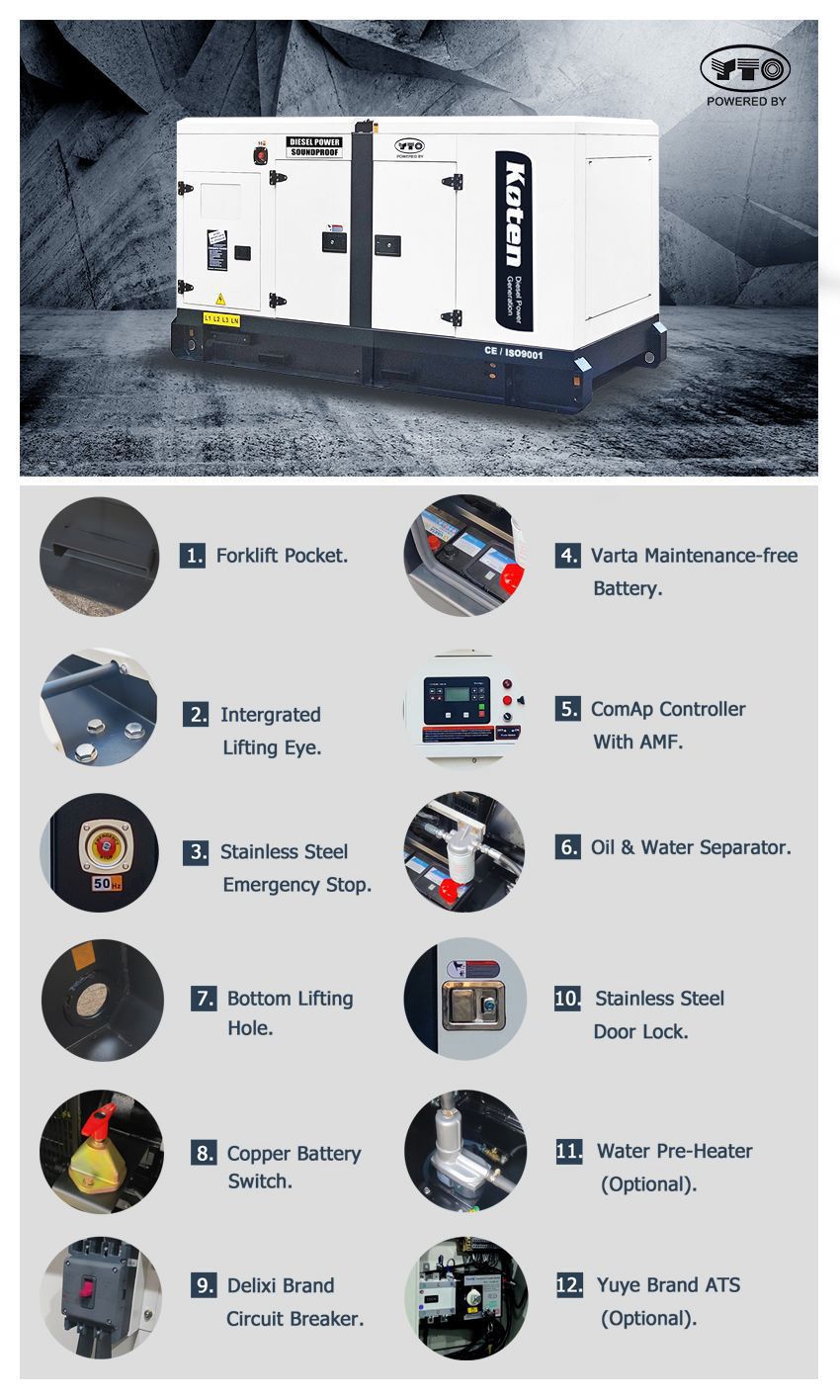

180kw enmergency diesel generator

Koten Power YTO series generators which equiped with YTO engine.

The YTO Group Corporation is a Chinese agriculture and construction machinery manufacturer that is part of Sinomach, a comprehensive machinery conglomerate.The company was founded in 1955 is the largest manufacturer of tractors in China.

As a well-known tractor brand, YTO engage in the field of diesel engine for generator, which win a good reputation in the market. Their high quality and preferential prices have won the trust of many customers.

Features & Benefits Of YTO Engine:

Easy service and maintance.
Adapt to harsh environment high altitude, extreme hot and cold environment and maintance.
Compact design
50 degree ambient temperature approved.
Low operation cost.

Aplication:

Koten gensets had been widly applicated for hospital, factories, shopping mall, hotel, banks, telecommunictaion, residential, airport, stations, military ect.

1,Technical data.

Genset Specification	Genset Model	KDY-225/S		KDY-245/S
	Frequency	50Hz		60Hz
	Prime Power	180kW	225kVA	196kW	245kVA
	Standby Power	198kW	248kVA	216kW	270kVA
	Rated Voltage	400/230V		220/127V
	Rated Current	357A		707A
Engine Specification	Engine Brand	YTO
	Model	YM6H4LF-D		YM6H4LF-D
	Aspiration	Turbocharged With After Cooler		Turbocharged With After Cooler
	Fuel System	Direct Inject
	No.Cylinders	6 in line
	Displacement	8.822L
	Bore * Stroke	120*130mm
	Compression Ratio	17.5:1
	Raated Speed	1500rpm		1800rpm
	Rated Power (With Fan)	206kW		215kW
	Governor Type	Electronic		Electronic
	Start Motor	24V
Alternator Specification	Alternator Brand	Koten KA-274J		Koten KA-274H
		Stamford UCI274J		Stamford UCI274J
	Phase	3
	Voltage	400/230V		220/127V
	Wiring Type	3 Phase 4Wire,Y Type
	Bearing	Single
	Power Factor	0.8
	Frequency	50Hz		60Hz
	Prime Power	184kW		196kW
	Exciter Type	Brushless, Self-Excitation
	Voltage Regulation	± 1%
	Protection Grade	IP23
	Isulation Grade	H/H
	Altitude	1000m
Control Module	Standard	SmartGen
	Model	HGM6120N
	Protective Functions	★Low Oil Pressure		Image
		★High Water Temperature
		★High/Low Voltage
		★High Engine Temperature And Overspeed
		★Emergency Stop
		★Start Failure
		★Automatic mains failure
	Optional	Deepsea		ComAp

2.Genset Configuration:

Standard:

Genset coupled with Original Fawde engine with heavy-duty air filter, oil filter, fuel filter, fuel and water separator. Standard Koten brand brushless ac alternators. Alternator optional for Stamford, Leroy Somer, Marathon, Meccalte.
Large size radiator.
Heavy duty antivibration pad.
Heavy duty steel base frame with 8 hours continues working fuel tank.
The thickness of the canopy is 2mm at least with high quality paint materials and strict powder paint processing.
High quality door locks and hinges and 180° revolvable with disassemble door for easy maintenance.
large-scale impedance combined type muffler with high quality soundproof and insulation materials to ensure the low noise level for the generators.
High quality maintenance-free battery with connecting cables.
Standard mcb or mccb with brand Delixi. Optional for Chint,ABB ect.
Standard Smartgen HGM6120N control moduel with AMF function, Optional for Deepsea, ComAp, Datakom,Deif ect.
Genset standard with battery charger and ATS connection port.
Genset standard with 4 lift eyes, lift pockets on the base frame and lifting port on the top of the canopy which ensure the gensets can be transport easily.
