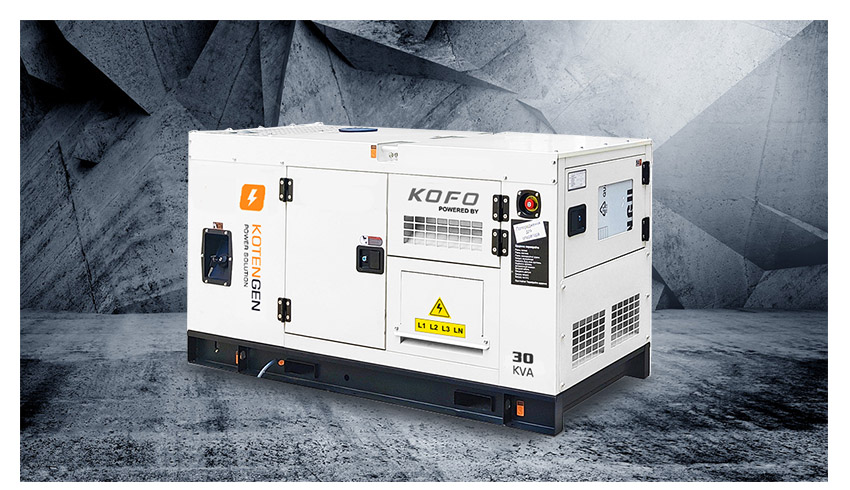

Kofo Series 48KW 60KVA Soundproof Diesel Power Generation

Brand Koten
Product origin Fujian China
Delivery time 20-25days
Supply capacity 200pcs per month

Koten Ricardo Kofo Series Generator With Prime Power
48kW/60kVA @50Hz 400V
56kW/70kVA @60Hz 220V

Email

Download

48kw soundproof generation

Koten Power Diesel Generator Set Powered By Ricardo Kofo Engine.

50Hz ,400V Three Phase Prime Power 48KW / 60KVA.

60Hz, 220V Three Phase Prime Power 56KW / 70KVA.

Koten Power Ricardo Kofo series generators which equiped with Kofo engine. Shandong Kofo Co., Ltd. is a collection of diesel engine research and development, manufacturing, sales as one of the specialized high-tech enterprises. The main products of the company are R, 100, Y80 and Steyr four series diesel engine, power range from 10Kw to 360Kw, the company has a technical team and management team with more than twenty years of experience in the production of diesel engine, adhere to the market oriented, customer demand as the focus. this brand engine are very popular in Southeast Asia, South American, Middle East and South Africa markets and so on.

Features & Benefits Of Ricardo Engine:

Easy service and maintance.
Adapt to harsh environment high altitude, extreme hot and cold environment and maintance.
Compact design
50 degree ambient temperature approved.
Low operation cost.

Aplication:

Koten gensets had been widly applicated for hospital, factories, shopping mall, hotel, banks, telecommunictaion, residential, airport, stations, military ect.

1,Technical data.

Genset Specification	Genset Model	KR60D5		KR70D6
	Frequency	50Hz		60Hz
	Prime Power	48kW	60kVA	56kW	70kVA
	Standby Power	53kW	66kVA	62kW	77kVA
	Rated Voltage	400/230V		220/127V
	Rated Current	86A		183.7A
Engine Specification	Engine Brand	Ricardo Kofo
	Model	N4105ZDS
	Aspiration	Turbocharged
	Fuel System	Direct Inject
	No.Cylinders	4 in line
	Displacement	4.33 L
	Bore * Stroke	105*120mm
	Compression Ratio	17.0:1
	Raated Speed	1500rpm		1800rpm
	Rated Power (With Fan)	56kW		62kW
	Governor Type	Mechanical/Electrical		Mechanical/Electrical
	Start Motor	24V
Alternator Specification	Alternator Brand	Koten KA-224E		Koten KA-224E
	Phase	3
	Voltage	400/230V		220/127V
	Wiring Type	3 Phase 4Wire,Y Type
	Bearing	Single
	Power Factor	0.8
	Frequency	50Hz		60Hz
	Prime Power	40kW		50kW
	Exciter Type	Brushless, Self-Excitation
	Voltage Regulation	± 1%
	Protection Grade	IP23
	Isulation Grade	H/H
	Altitude	1000m

2.Genset Controller:

3.Genset Configuration:

Standard:

Genset coupled with Ricardo Kofo engine with heavy-duty air filter, oil filter, fuel filter, fuel and water separator. Standard Koten brand brushless ac alternators. Alternator optional for Stamford, Leroy Somer, Marathon, Meccalte.
Large size radiator.
Heavy duty antivibration pad.
Heavy duty steel base frame with 8 hours continues working fuel tank.
The thickness of the canopy is 2mm at least with high quality paint materials and strict powder paint processing.
High quality door locks and hinges and 180° revolvable with disassemble door for easy maintenance.
large-scale impedance combined type muffler with high quality soundproof and insulation materials to ensure the low noise level for the generators.
High quality maintenance-free battery with connecting cables.
Standard mcb or mccb with brand Delixi. Optional for Chint,ABB ect.
Standard Smartgen HGM6120N control moduel with AMF function, Optional for Deepsea, ComAp, Datakom,Deif ect.
Genset standard with battery charger and ATS connection port.
Genset standard with 4 lift eyes, lift pockets on the base frame and lifting port on the top of the canopy which ensure the gensets can be transport easily.
